Description

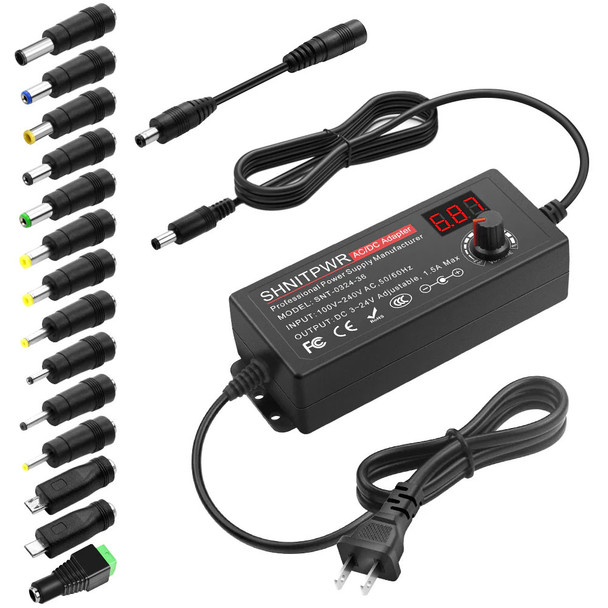

36W Universal AC to DC Adapter 3V ~ 24V Adjustable Power Supply Ac/DC Converter Transformer

FEATURES

Input and Ouput – It can supply with any voltage between 3~24V,such as 3V 4V 4.5V 5V 5.5V 6V 9V 12V 14V 15V 19V 20V 24V, etc and any amp less than 1.5A, such as 300mA, 500mA, 650mA, 1A, 1.2A, 1.5A. LCD display will show the output voltage, in case that wrong voltage regulation damage your device.
14 Frequently Used Tips – It comes with an original 5.5x2.5mm tip and 14pcs frequently used tips: 6.5x4.4mm+Pin, 5.5x2.1mm, 5.5x3.0mm+Pin, 5.0x2.5mm, 6.3x3.0mm, 5.5x1.7mm, 4.8x1.7mm, 4.0x1.7mm, 3.5x1.35mm, 3.0x1.1mm, 2.5x0.7mm, Micro-USB, Type-C and DC terminal connector. Can be applied to almost all commonly used electronic devices. You can screw wires onto it easily, perfect for DIY projects.
Wide Range of Applications – The 36W all-in-one multipurpose AC/DC adapter fit for many 3~24V small household electronics such as LED strips, under-cabinet light, TV Box, smart speaks, wireless routers, essential oil diffuser humidifier, USB fan, Wifi camera, USB Hub, hard disk box, DC motor, DC pump, digital photo frame, DVR NVR surveillance system etc.For indoor use only.
Safety Protection – Built-in multiple safety protection systems. Automatic over voltage cut-off, over current cut-off, over temperature cut-off, short circuit cut-off. We focus on producing premium quality and safety power adapters. No noise, no spontaneous combustion, no explosion, no fire hazard, safe to use. 6ft long power cable makes it convenient to use.

WHAT'S INCLUDED

(1) 36W Universal Power Supply Adapter
(14) DC Tips
(1) Reverse polarity converter cable

SPECIFICATIONS

Input: AC 100V~240V 50/60Hz
Output Voltage: DC 3V~24V Adjustable
Output Current / Wattage: Max 1.5A 36W
Output DC connector:5.5mm x 2.5mm (inside"+", outside"-")
Reverse polarity converter: 5.5mm x 2.1mm
14 Tips Size: 6.5x4.4mm+Pin, 5.5x2.1mm, 5.5x3.0mm+Pin, 5.0x2.5mm, 6.3x3.0mm, 5.5x1.7mm, 4.8x1.7mm, 4.0x1.7mm, 3.5x1.35mm, 3.0x1.1mm, 2.5x0.7mm, Micro-USB, Type-C and DC terminal connector.
Power cable length: 6.6ft / 200cm
Safety Compliance: FCC / CE/ RoHS
Working Temperature: 0~40℃
Weight: 0.9 lb / 400g

WARNING: This product is an AC to DC adapter, NOT charger!!!It can’t be used to charge electronic devices with batteries, such as laptops. Please choose correct voltage before plug it to your device. Wrong voltage may damage your device. It is recommend to use less than 80% of the full load.

NOTE: The power cord between power brick and DC plug will lead to 0.4V~0.6V voltage drop, so we designed the screen displayed voltage was 3.5V~24.5V. Only in this way can your device really get 3V~24V voltage. This is the reason why we advertise the power supply's voltage range is 3V~24V, not 3.5V~24.5V.
