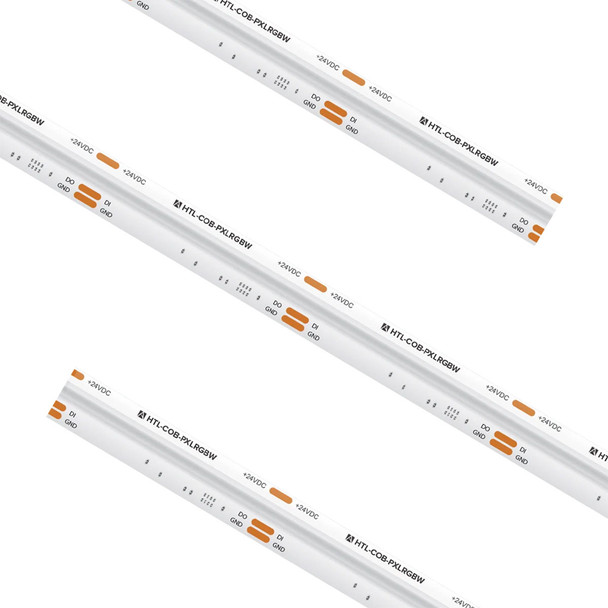

American Lighting High Output Pixel COB Tape Light IP54 RGBW

The Amercian Lighting digital pixel COB tape light allows for individually addressable sections, enabling independent control of dynamic color and design. Featuring a seamless COB design, create endless effects including chasing, popcorning, waves, and strobe with easy to use SPI control protocol.

FEATURES

• Seamless COB design that eliminates virtually all LED dotting
• Dynamic, Pixel-based RGBW (3000K) color mixing capabilities
• Create millions of color combinations for impactful installations
• Cuttable every 3.94” with 16.4ft max run
• Control via DMX for color and dimming (requires SPI decoder)
• cULus Listed for indoor dry and damp locations
• 50,000 hours rated life

SPECIFICATIONS

• Item Number: HTL-COB-PXLRGBW-16
• Length: 16.4 ft
• Dimensions (WxH): 0.39 x 0.12 in. (10 x 3 mm)
• Wattage: 4.87 W/ft
• Voltage: 24V DC
• IP Rating: IP54
• Weight: 3.33 lbs
• CCT Options: RGBW (3000K) Dynamic Pixel
• CRI: 90
• Max Run: 16.4 ft (5M)
• Cutting Points: 3.94 in. (100 mm)
• Protocol: SPI WS2814
• Resolution: 3.94 in. (100 mm)
• Beam Angle: 120°
• Operating Temp: -20°C (-4°F) to 40°C (104°F)
• Rate Life: 50,000 Hours
• Certifications: cULus Listed - dry and damp locations
