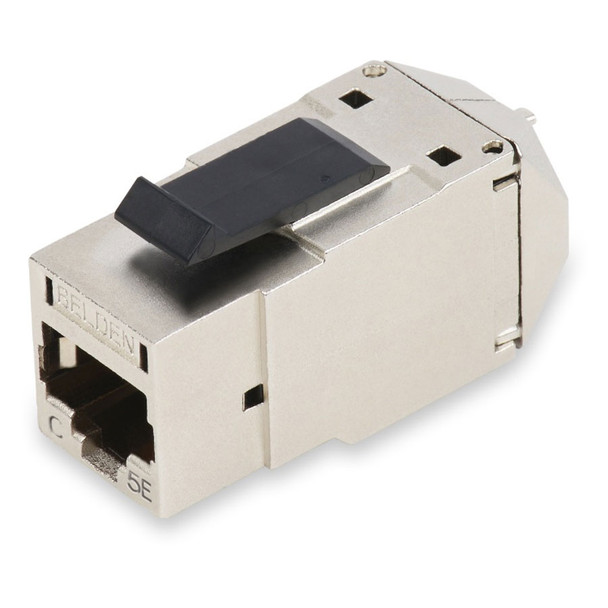

Belden REVConnect CAT5e Shielded Jack Metal (24 pack)

The Belden REVConnect RV5MJKSME CAT5E STP Modular Jack, Metal, T568 A/B is for CAT5e STP wire.

FEATURES

• Quick Deployment
• Excellent Holding Strength
• Suitable Applications: 1200 Shielded System, TIA Category 5E, ISO Class D, 1GBASE-T
• Packaging: 24 connectors

SPECIFICATIONS

PHYSICAL

• Overall Height: 0.94 in.
• Overall Width: 1.19 in.
• Overall Depth: 1.63 in.
• Wiring Scheme: T568A/B
• Weight: 0.048 lbs

MATERIALS

• Front Connection: RJ45 - Copper Clad Flexible PCB, 50uin Gold plated contacts over Nickel
• Rear Connection: REVConnect - Copper alloy, Gold plated contacts over Nickel
• Connector Body: Nickel plated zinc alloy diecast

ELECTRICAL

• Dielectric Strength: 1,000V RMS @ 60 Hz for 1 minute (Signals to Ground)
• Current Rating: 1.300 A
• Insulation Resistance: 500 M-Ohm Minimum
• Max Contact Resistance: 20 mOhm
• Termination Resistance: 2.5 mOhm

MECHANICAL

• Connector System Compatibility: REVConnect
• Tool Compatibility: REVConnect Termination Tool (p/n RVUTT01)
• Plug /Jack Compatibility: RJ45, RJ11
• Termination Front Connection: Mated Connection
• Termination Front Connection Durability: 750 cycles
• Termination Rear Connection: Mated Connection
• Termination Rear Connection Durability: 20 cycles
• Cable/Connector Retention: 15 lbs.
• Connector/Hardware Retention: 20 lbs
• Plug/Connector Retention: 11.250 lbs

TEMPERATE RANGE

• Installation Temperature Range: -10°C to +60°C
• Storage Temperature Range: -40°C to +70°C
• Operating Temperature Range: -10°C to +60°C

STANDARD

• UL Rating: UL94V-0
• Data Category: Category 5e
• TIA/EIA Compliance: Category 5e - TIA 568.C.2, Category 5 - ISO/IEC 11801:2002 Ed.2
• IEEE Compliance: Power Over Ethernet (PoE) IEEE 802.3at type 1 and 2 (up to 30W), IEEE802.3bt/D1.7 type 3 and 4 (up to 100W), CISCO UPOE (up to 60W), Power over HDBaseTTM (up to 100W)
• Other Standards: IEC 60603-7

ENVIROMENT

• Environmental Space: Indoor
• EU Directive 2002/95/EC (RoHS): Yes
• MII Order #39 (China RoHS): EUP 50
• UL Flammability: UL2043 Air Handling Spaces
• Safety Listing: c(UL)us Listed
