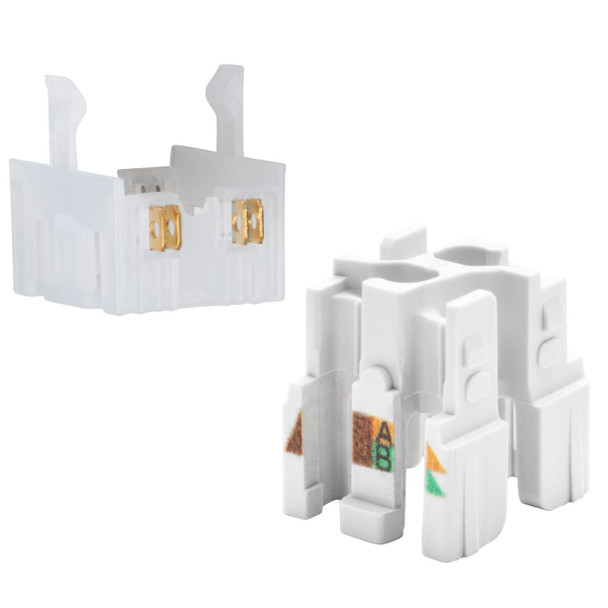

Belden RevConnect Core, White (50 pack)

The Belden REVConnect Core Pack, Bulk Pack of 50. Used to terminate REVConnect Jacks and Plugs - Compatible for Insulated wire diameter 0.9mm up to 1.3mm.

FEATURES

• Suitable Applications: Terminate REVConnect Jacks and Plugs
• Packaging: 50 cores

SPECIFICATIONS

PHYSICAL

• Insulation O.D. Range: core 0.90 to 1.30 mm & Insulation
• O.D. Range: core 1.30 to 1.45 mm
• Cable Jacket O.D. Max: 9.3 mm Weight: 0.18 lbs

MATERIALS

• Connector: PBT UL94V-0

ELECTRICAL

• Dielectric Strength: 1,000V RMS @ 60 Hz for 1 minute (Signals to Ground)
• Current Rating: 1.300 A
• Insulation Resistance: 500 M-Ohm Minimum
• Max Contact Resistance: 20 mOhm
• Termination Resistance: 2.5 mOhm

MECHANICAL

• Connector System Compatibility: KeyConnect
• Body Attachment Method: Compression
• Tool Compatibility: REVConnect Termination Tool (p/n RVUTT01)
• Contact Attachment Method: Insulation Piercing

TEMPERATE RANGE

• Installation Temperature Range: -10°C to +60°C
• Storage Temperature Range: -40°C to +70°C
• Operating Temperature Range: -10°C to +60°C

ENVIROMENT

• Environmental Space: Indoor
• EU Directive 2002/95/EC (RoHS): Yes
