ChamSys GeNetix 4-Port DMX Splitter DIN Rail
- UPC:
- 781462230500
- MPN:
- GENETIXDINDMX (GD4D)
- Availability:
- This item is shipped directly from the vendor and is subject to their availability.
- Drop Shipment:
- Not available for in-store pick up
Frequently bought together:
Description

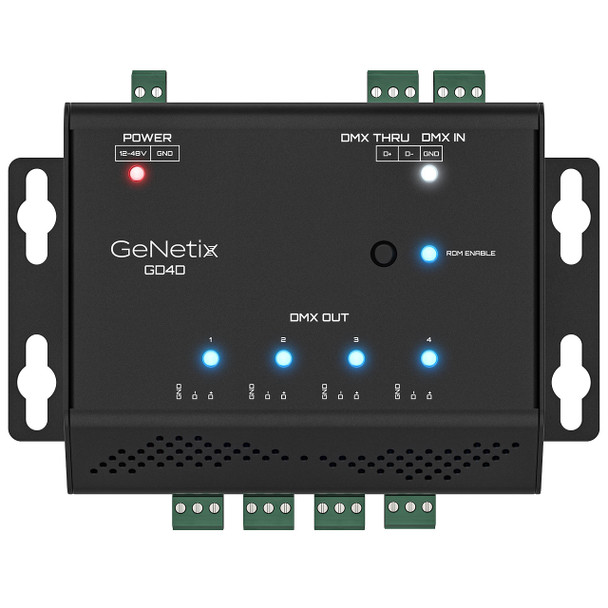

GeNetix GD4D is a DIN rail mountable RDM-capable 4-Port DMX Splitter fitted with phoenix screw terminals for DMX IN, THRU, and OUT from terminal block connectors, offering a design ideally suited to the needs of permanent installations. GD4D is powered via an external 12-48V power supply (purchased separately). GD4D features an ‘RDM Disable’ option to strip out RDM data and retime the DMX signal. LEDs provide visual indication to know if the GD4D is connected to external power, if RDM is enabled, and DMX input and output status.
FEATURES
- 4 port RDM E1.20 Compliant DMX Splitter
- Powered via External 12-48v Power Supply
- RDM Disable and DMX Re-time Option
- DIN Rail Mountable
WHAT'S INCLUDED
- GeNetix GD4D DMX Splitter
- DIN Rail Mount Clip
- Quick Start Guide
NOTE: Required external 12-48V power supply purchased separately.
SPECIFICATIONS
HARDWARE
- Phoenix Screw Terminal DMX Output Ports: 4
- DMX In and Through option: Yes
- PoE Output: Yes – When powered by a 48v External Power Supply
- RDM Disable/Enable Option: Yes
- DIN Rail Mounted: Yes
- Powered via External 12-48v Power Supply: Yes (not included)
SOFTWARE
- RDM E1.20 Compliant: Yes
WEIGHTS AND DIMENSIONS
- Width: 4.09 in. (104 mm)
- Depth: 3.42 in. (87 mm)
- Height with DIN clip: 2.55 in. (65 mm)
- Weight: 0.88 lb (0.4 kg)
