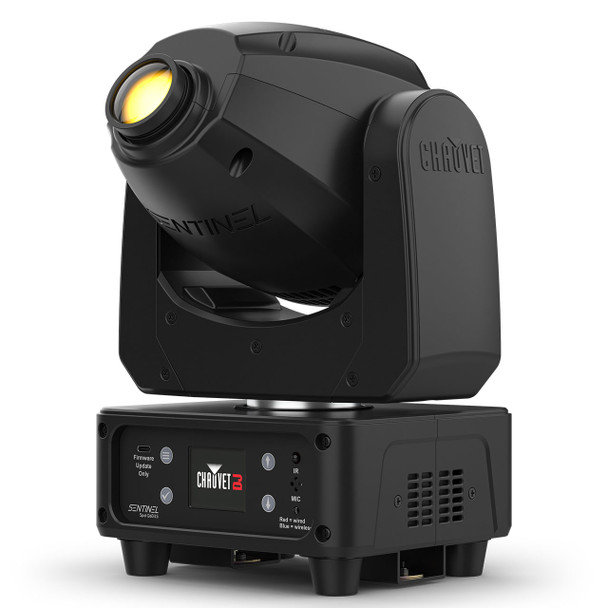

Chauvet DJ Sentinel Spot Q60 ILS

The versatile Chauvet DJ Sentinel Spot Q60 ILS brings all the essential moving head features with no compromise and the added benefit of a Totem Mode that keeps all the action pointed at the dance floor. Project crisp gobos and saturated colors with its intense 60W RGBW LED. Built-in D-Fi makes wireless setups easy and ILS compatibility makes it a snap to instantly synchronize with a wide range of fixture types to create cutting-edge light shows. Smooth motion, consistent color and easy control, all in a compact size ideal for your next party gig.

FEATURES

• Cutting-edge moving head spot fitted with an intense RGBW color mixing LED
• Built-in DFI transceiver communicates DMX or ILS signals wirelessly
• Easy navigation and access to all functions directly from the full-color LCD display
• ILS compatibility for use in the ILS ecosystem
• Totem Mode keeps the moving head focused on the dance floor
• Save time running cables and extension cords by power linking multiple units
• Fits best in the CHS-40 VIP Gear Bag

WHAT'S INCLUDED

• Sentinel Spot Q60 ILS
• Power cord
• Hanging bracket
• Quick Reference Guide

SPECIFICATIONS

• DMX Channels: 9 or 15
• DMX Connectors: 3-pin XLR
• Pan and Tilt: 540°/229°
• Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 229° tilt
• Gobos: 5 + open (6 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Light Source: 1 LED (quad-color RGBW) 60 W, (4.4 A), 50,000 hours life expectancy
• Strobe Rate: 0 to 20 Hz
• Beam Angle: 12°
• Illuminance: 8,687 lux @ 2 m
• Gobo Size: 24 mm outside, 20 mm image, 1.1 mm max thickness
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current:
  • 76 W, 1 A @ 120 V, 60 Hz
  • 76 W, 0.7 A @ 230 V, 50 Hz
• Power Linking: 7 units @ 120 V; 11 units @ 230 V
• Size: 8 x 5.9 x 13 in. (204 x 150 x 332 mm)
• Weight: 9 lb (4.1 kg)
• Approvals: CE, RoHS, FCC
• Optional Controllers: IRC-6, ILS Command
