Chauvet Professional CP Rack Storage & Transport Cart V2

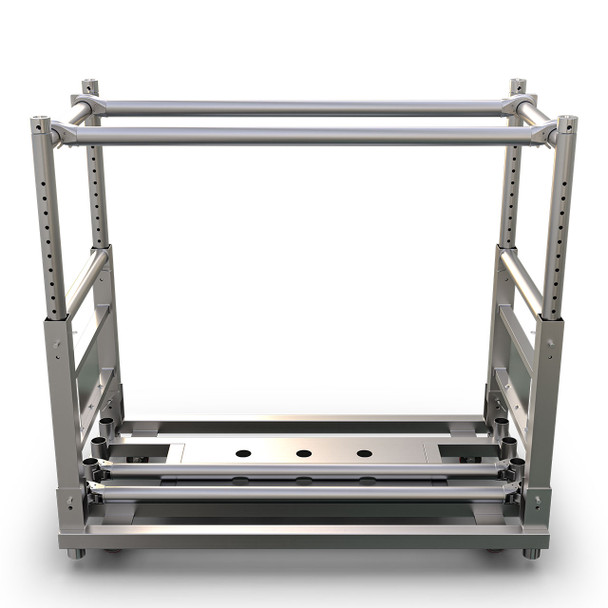

A compact, lightweight, and stackable rack designed to hold up to 1,000 lbs of lighting fixtures, featuring an adjustable height and a foldable design for versatile mounting and efficient transport. Perfect for touring productions and corporate events, especially for installations in venues with challenging access points such as small elevators, narrow hallways, and ballrooms.

CP Rack can be stacked two-high, allowing for better space utilization when transporting. Designed for global use, the CP Rack is both US and EU Truck pack ready (3 wide) and and at a height of just over 4 feet (1.38m) it fits easily in small elevators, through ADA doors, and can navigate hallways to ballrooms and other potentially hard-to-get-to installations.

Once CP Rack is fully assembled, it can be configured and reconfigured to best suit the type of fixtures being mounted.

POSSIBLE CONFIGURATIONS

• Four (4) large moving heads (e.g., Maverick Storm 4 Profile / Force 3 Profile)
• Six (6) mid-size moving heads (e.g., Maverick Storm 2 Profile / Force S/1/2 Profiles/Spots)
• Twelve to sixteen (12-16) small moving wash fixtures (e.g., Rogue Outcast 1 BeamWash / Rogue R2X Wash)
• Eight to ten (8-10) Ovation ellipsoidals with lenses
• Four (4) COLORado PXL Bar 16 (with clamps) or Eight (8) COLORado PXL Bar 8 (with clamps)
• Six (6) STRIKE Array 4 or Twelve (12) STRIKE Array 2

FEATURES

• High Load Capacity This compact and lightweight rack is engineered to safely support up to 1,000 lbs (453kg) of lighting equipment.
• Adjustable Height – The overall height can be raised or lowered to accommodate various fixture sizes without needing extra accessories.
• Folds for Storage – The entire rack folds flat in seconds, making storage simple and convenient when not in use.
• Removable H Frames – The uprights can be detached from the rack and used independently as H frames for hanging fixtures from a truss.
• Truck Pack Optimized – Racks can be stacked two high to fit in a standard tractor-trailer and are sized for efficient US and EU truck packing.
• Compact Footprint – Its compact dimensions allow the rack to easily pass through ADA compliant doorways and fit into smaller elevators.
• High Capacity Casters – Equipped with 5-inch high-capacity casters, the rack moves smoothly even when fully loaded with gear.
• Large Fixture Capacity – The rack is designed to transport up to four of our largest and heaviest lighting fixtures at once.
• Included Protective Cover – A protective cover is included with every rack to shield your fixtures during transport and storage.

WHAT'S INCLUDED

• CP rack
• Cover

SPECIFICATIONS

CONSTRUCTION / PHYSICAL

• Frame Material: luminum
• Tube Material: Aluminum
• Exterior Color: Silver
• Dimensions at maximum height: 54.3 x 31.5 x 43.83 in. (1.38 x 0.80 x 1.11 m)
• Dimensions folded: 54.3 x 31.5x 12.6 in. (1.38 x 0.80 x 0.33 m)
• Weight: 75.5 lb (34.25 kg)
• Load capacity: 1,000 lb (453kg)
• Castor capacity: 1,102 lb (500 kg)
• Maximum Stacking: 2 high
