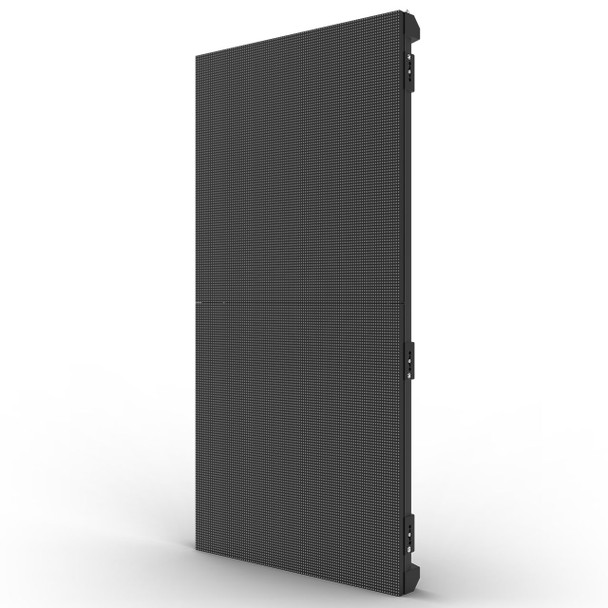

Chauvet Professional F4X IP SMD LED Video Panel (4 pack)

The Chauvet Professional F4XIP is a high performance IP65 outdoor-rated video panel with brilliant SMD 1921 LEDs outputting 5,000 NITS with a dynamic contrast ratio of 3,300:1. Video and images stand out both indoors and outdoors – even in broad daylight. Specialized LED drivers with S-PWM and an impressive display refresh rate of 3,840 Hz enhance on-camera performance. Quick and easy setup is optimized by an advanced light-weight die-cast magnesium housing and magnetic assisted hanging. The magnetic LED modules simplify maintenance and installation by making it both front and rear serviceable. And the fully equipped F4XIP also comes with an included road case and power/data linking cables.

FEATURES

• 4.8 mm pitch outdoor rated video panel in convenient 1000 mm (tall) by 500 mm (wide) form factor (500 x 500 mm available)
• Easily configure and drive content with the VIP Drive 43Nova 2 or the VIP Drive 83R Nova, powered by the Novastar control protocol
• High quality black body LEDs accurately reproduce video at 14-bit grayscale, operating on the A5s receiver card from Novastar (18-bit available)
• High performance digital LED drivers deliver 3840Hz refresh rate and a clear, vibrant image
• Uses specialized LED dimming control via S-PWM (scrambled PWM), which enhances on-camera performance.
• Intelligent, high speed magnetic LED modules with dedicated memory stores factory calibration, ensuring optimal image quality, color uniformity, and simplifies maintenance by making service fast and easy
• Magnesium die-cast housing makes this product among the lightest and slimmest in its class without compromising strength, capable of hanging up to 23 vertical panels safely
• Specialized frame design allows for overhead hanging, ground stacking, and wall mounting, maximizing installation flexibility and aftermarket front and rear service; simply push out modules from the rear, using the handles, or use the included service tool from the front.
• Front LED surface protective design features prevent damage when handling: 4x stainless steel standing feet to keep the LEDs from touching the floor, specialized LED board design to improve impact resistance up to 3x that of other panels, and resilient led mask design to optimize image viewing angle and uniformity without exposing the LEDs to front or side impacts
• Strong, magnetic assisted hanging makes setting up the panels fast and easy with a minimal crew
• Optimized heat dissipation ensures an even color across the F4XIP
• Dual power supplies increase the stability of the system for redundant receiver card power
• Cable management solutions include angled connectors on panels for easy operation, long cables which can connector horizontally or vertically, and handles on the bottoms of each panel to organize cables and keep them neat
• Ground support system, and concave curving hardware available

WHAT'S INCLUDED

• (4) F4XIP SMD LED Video Panels
• (1) Seetronic powerKON IP65 power cord
• (4) Seetronic powerKON IP65 power linking cords
• (4) Seetronic etherKON IP65 signal linking cords
• (5) spare masks
• (1) Module removal tool
• Road Case

REQUIRED ACCESSORIES

• Controller (required): VIP Drive 43Nova 2 or VIP Drive 83R Nova
• Compatible Mounting Options:
  • F-series™ Dual Function Rig Bar (0.5 m, 1 m) (truss mounting)
  • M12 bolt/clamp (rear or surface mounting)
  • GROUNDSUPPORT2KIT (floor mounting)
