Chauvet Professional

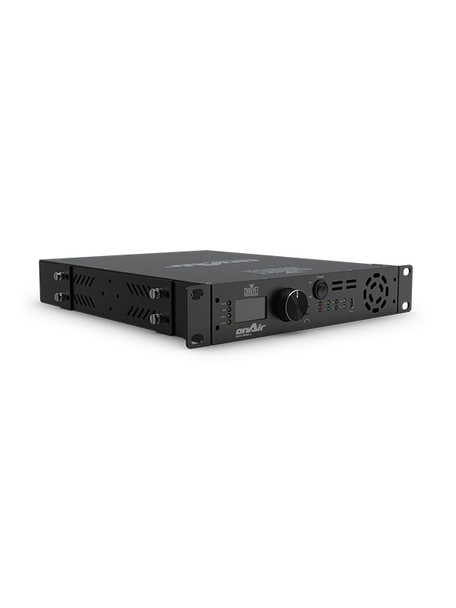

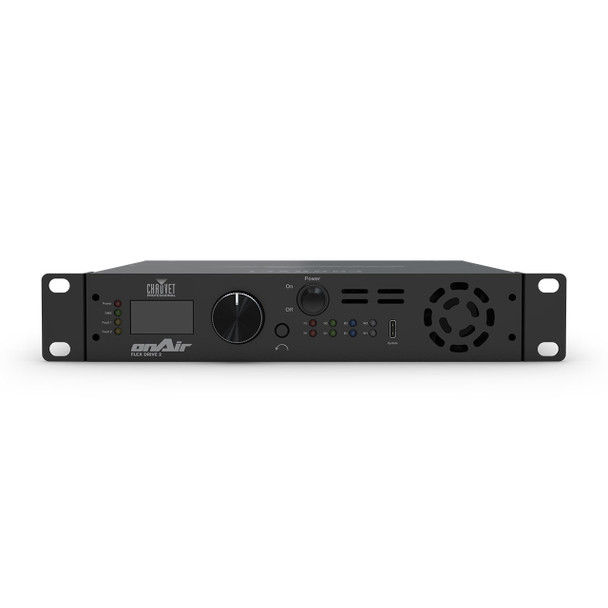

Chauvet Professional onAir Flex Drive 2
- UPC:
- 781462222666
- MPN:
- ONAIRFLEXDRIVE2
- Availability:
- This item is shipped directly from the vendor and is subject to their availability.
- Drop Shipment:
- Not available for in-store pick-up
- Type:
- Effect
- Source:
- LED
- IP-Rating:
- IP20
Description
onAir Flex Drive 2 is an LED Driver ideal for TV studios seeking simple and impactful on-camera looks with integrated power supply and driver for a one-box modular solution. onAir Flex Drive 2 features 24v to allow longer run lengths for set pieces and light boxes, and 8 channels of output for complete flexibility with a choice of tapes and lengths. It also features adjustable PWM, making it ideal for broadcast compatibility. With two outputs, onAir Flex Drive 2 supports RGBW or generic 4-channel control for up to 350W of total power and assisted convection cooling perfect for studio environments. To ease installation, onAir Flex Drive 2 also features DMX 5pin and Phoenix connector for installation support.
FEATURES
- TV focused 24 VDC constant voltage LED Driver with integrated power supply
- Adjustable PWM makes this product ideal for broadcast compatibility
- Two outputs support RGBW or generic 4-channel control for up to 350W of total power
- Assisted convection cooling utilizes a quiet fan for studio environments
- Built in overcurrent and short circuit protection with indicator LEDs
- RDM supported for remote device management
- Scalable rack mount system, two per 1U space
- DMX 5pin and Phoenix connector for installation support
WHAT'S INCLUDED
- onAir Flex Drive 2
- Neutrik powerCON TRUE1 power cord
SPECIFICATIONS
DYNAMIC EFFECTS
- Standalone Color Mixing: Yes
- Built-in Automated Programs: Yes
CONSTRUCTION / PHYSICAL
- Dimensions: 5.4 x 4.3 x 0.8 in (137 x 109 x 20 mm)
- Weight: 5.4 lb (2.44 kg)
- Exterior Color: Black
- Housing Material: Steel
- Rackmount: 1U
CONNECTIONS
- Power Connection: Edison (Local) plug to Neutrik powerCON TRUE1 Compatible
- Power Input: Seetronic Powerkon (powerCON Compatible)
- Power Output: Seetronic Powerkon (powerCON Compatible)
- Device Outputs (5-pin Phoenix Connector): 2
- Physical Linking Per Port: 2 RGBW Tape
- Data Connectors: 5-pin XLR, 3 Pin Phoenix Connector
- Cable Length (power): 5 ft (1.5 m)
- Total Max Cable Extension Length Per Port: 100 ft (30.48m) 16 AWG
CONTROL
- Control Protocol: DMX
- DMX Channels: 8 or 10
- Modes/Personalities: RGBW, RGBW+D
- Total Output Power (Per Port): 200 W
- Total Output Power (Total): 350 W
ELECTRICAL
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking: 2 units @ 120 V; 5 units @ 208 V; 5 units @ 230 V;
- Power and Current: 400 W, 3.34 A @ 120 V, 60 Hz
- Power and Current: 400 W, 1.93 A @ 208 V, 60 Hz
- Power and Current: 400 W, 1.74 A @ 230 V, 50 Hz
CERTIFICATIONS / QUALIFICATIONS
- CE
- US Safety: UL 8750
- Canadian Safety: CSA C22.22 No. 250.13
- IP Rating: IP20, dry location
- Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
