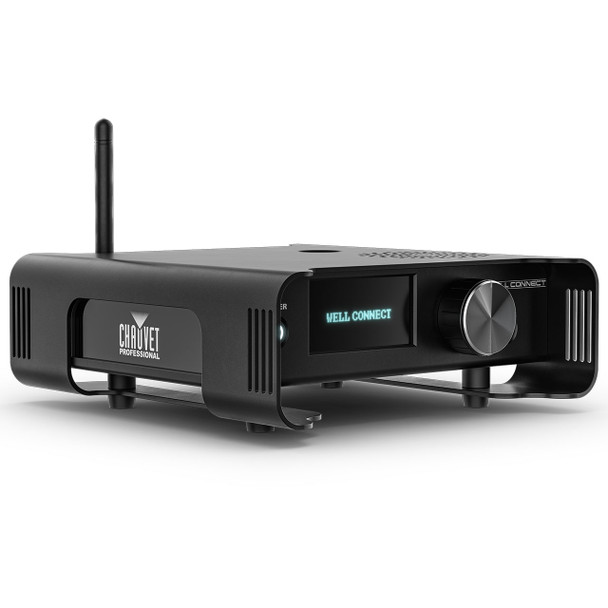

Chauvet Professional WELL Connect

The WELL CONNECT is a compact, battery-powered wireless transceiver that enables robust W-DMX/CRMX data transmission and flexible, app-driven control over any lighting system. Ideal for event professionals and system integrators seeking a portable and versatile solution to effortlessly make an entire lighting rig or individual fixtures wireless.

FEATURES

• Offers versatile control via the ConnectFX app, W-DMX, CRMX, Art-Net, and sACN protocols.
• Delivers up to 12 hours of operation from its battery or continuous power via USB-C.
• Enables intuitive wireless control and scene creation directly from the ConnectFX app.
• Features onboard playback to trigger pre-programmed scenes directly from the unit’s display.
• Built with a rugged aluminum housing and an M12 thread for secure mounting in any environment.
• Allows for easy firmware updates and configuration through a simple web-based user interface.

WHAT'S INCLUDED

• WELL CONNECT
• EPSU USB-A
• USB-A to USB-C cable

SPECIFICATIONS

CONNECTIONS

• Power Input: USB-C
• Data Connectors: 5-pin XLR IN/OUT, USB-A Female, RJ45

CONTROL

• Control Protocol: Chauvet CONNECT app, Art-Net, DMX, W-DMX, sACN

ELECTRICAL

• Input Voltage: 5 VDC, 2A via USB-C

BATTERY

• Battery type: Lithium Ion
• Rechargeable: Yes
• Battery Charge Time: 8 hours
• Battery Life: 12 hours
• Battery Power: 12 V, 24 Ah

CONSTRUCTION/PHYSICAL

• Dimensions: 6.89 x 7.01 x 2.56 in. (175 x 178 x 65 mm)
• Weight: 1.8 lb (0.9 kg)
• Exterior Color: Black
• Housing Material: Aluminum alloy

CERTIFICATIONS/QUALIFICATIONS

• Certifications: CE, FCC, UKCA
• IP Rating: IP20, dry location
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

REQUIRED ACCESSORIES

• Required Software: Chauvet CONNECT app

COMPATIBLE ACCESSORIES

• VIP Signal Distributor, VIP Media Server
