Chief CMS492CP2 2' x 2' AV Ceiling Storage Box w/Column w/Power

New item – old stock in older packaging.

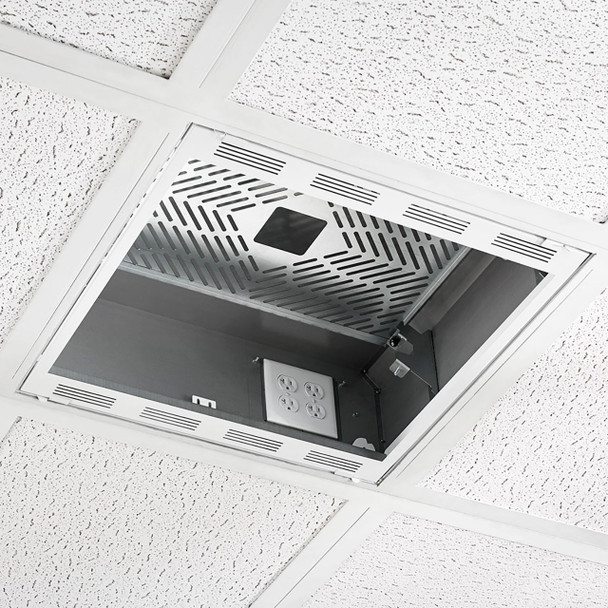

The CMS492CP2 conceals AV equipment above a 2' X 2' ceiling tile and supports a 1.5" NPT column drop for mounting projectors within the same tile grid providing a clean professional look for classrooms and conference rooms.

Includes a high-performance, dual gang housing, isolated ground, dual receptacle outlet featuring non-sacrificial multi-stage filtration and surge protection. This protects equipment from disruptive high frequency noise and damage caused by power disturbances.

FEATURES

• Optimal pipe flexibility within the tile helps with less reliance on image correction improving image quality
• Drop carriage door improves accessibility and serviceability providing full access to equipment
• Detachable power housing can be pre-installed with electricians on site and assembled to the storage box at a later time
• Inside the box or facing the room
• Up to 2 single gang or 1 dual gang outlet
• 4 nested knockouts for 1-1/4", 1", & 1/2" diameter conduit
• Built in ventilation
• Ships with 1 shelf to support a variety of AV components
• (2nd shelf sold separately see CMSUNV2)
• (1 RU rack rail brackets sold separately, see CMS1RU)
• Overall weight capacity 100 lbs (45 kg)
• 50 lbs (22 kg) for projector ceiling plate
• 25 lbs (11 kg) per shelf location
• Ships with speed connect installation hardware
• Lightweight construction, one man installation
• UL evaluated for use in Air-Handling Spaces as defined by Article 300.22, Sub-clause (C) of the NEC

SPECIFICATIONS

SURGE AND FILTER MODULE

• Non-volatile spike protection with LED power indicator
• Non-sacrificial multi-stage technology
• Non-current limiting design passes full power on a regular circuit; redundant protection circuits
• Improves the reliability and functionality of connected equipment by safeguarding equipment from high energy transients, lightning strikes and electronic noise events that can cause gear degradation and downtime
• Line filter reduces common and differential mode noise by up to 40 dB
• Rated for 125V~, 60Hz, 15 A
• 1875 watt maximum
• Ferrite toroid based EMI Filter
• Withstand rating of 240 VAC continuous without damage or loss of protection
• Output: 15A, 1875 W continuous

POWER REQUIREMENTS

• N-G; 800V L-G Maximum Continuous Operating Voltage (MCOV): 240V Nominal Discharge Current (In): 3kA Short Circuit Current Rating (SCCR): 5kA Ambient Temperature Max: 40 degrees C
• Power Consumption: >0.5 watt Type 3 Surge Protective Device (SPD) Voltage Protection Rating (VPR): 600V L-N

PHYSICAL

• Accessory Type: Component Storage, Power, Suspended Ceiling
• Accommodate Column Drop: Yes
• Color: White
• Application: Ceiling
• Ceiling Tile Size: 2' x 2' (60.33 x 60.33 cm)
• Includes Power Outlet: Yes
• Receptacle Type: Two Surge and Filter
• Weight Capacity: 100 lbs (45.4 kg)
• Depth: 23.67 in (60.1 cm)
• Height: 8 in (20.3 cm)
• Width: 24.97 in (63.4 cm)
• Overall Dimensions: 8" x 24.97" x 23.67" (203 x 634 x 601 mm)
• Max Equipment Size: 7.61" x 19.25" x 20" (193 x 489 x 508 mm)
• Shipping Weight: 47 lbs (21.3 kg)
• Certifications: UL Listed
