Elation Professional

Elation FUZE Pendant HW 250W RGBWL LED

Write a Review
UPC:
810008262757
MPN:
FUZ026
Availability:
This item is shipped directly from the vendor and is subject to their availability.

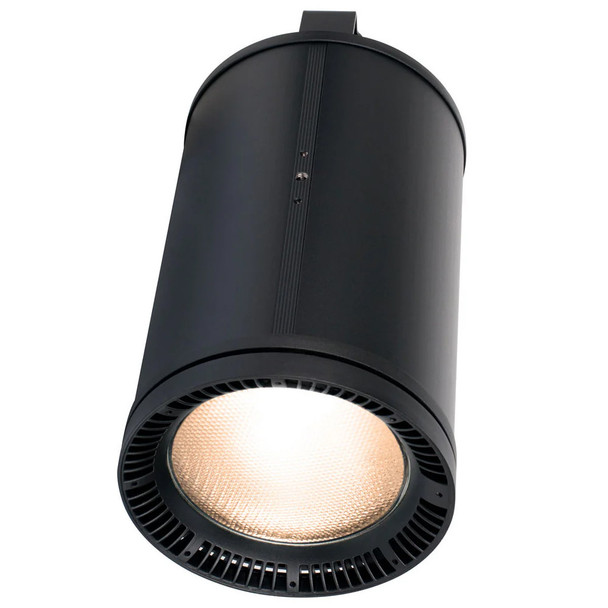

  • Elation FUZE Pendant warm white
  • Elation FUZE Pendant HW rear
  • Elation FUZE Pendant coole white
  • Elation FUZE Pendant blue
  • Elation FUZE Pendant red
  • Elation FUZE Pendant side
  • Elation FUZE Pendant example hanging
  • Elation FUZE Pendant on truss
  • Elation FUZE Pendant on truss full snoot
  • Elation FUZE Pendant on truss half snoot
  • Elation FUZE Pendant example warm white
  • Elation FUZE Pendant example blue
  • Elation FUZE Pendant example green
$1,799.00

More on the way, place an order today!

Frequently bought together:

Description

*Also available with white housing. Please call for more information.

The Elation Lighting FUZE PENDANT™ (HW) provides powerful illumination for a variety of house and area lighting applications. Crisp whites with a high CRI, plus subtle pastels and powerful pure colors with 16-bit dimming, allow for a wide range of smooth illumination and dynamic effects for any environment. At up to 11,000 lumens, the FUZE PENDANT (HW) is ideal for large areas and high-ceiling applications yet is compact enough to be adaptable to smaller spaces. It is convection cooled for absolute silence and has no fans or other moving parts for a long maintenance free product life.

Pendant and optional yoke or recessed ceiling options provide flexibility when finding the ideal mounting position and a variety of lens choices (45° included, 25°, 40°, 50°, 85° or 100° optional) allow for precise light distribution. Hardwired power, industry standard DMX connections, plus included terminal block connections, DMX, emergency battery input and 0-10V control are available to support the fixture for any power systems up to 277V.

FEATURES

  • Full Spectrum 250W 5in1 LED Array
  • 2400 - 8500K Color Temperature
  • CRI 90 @ 3,200K
  • 11,000 Total Lumen Fixture Output
  • 45° Lens Included
  • Optional 25°, 40°, 50°, 85° and 100° Lenses Available
  • Compact Fanless Design
  • DMX, RDM, 0-10V and E-FLY Wireless Support
  • 48V Emergency Battery Input
  • Hardwired power input up to 277V
  • Pendant Bracket (included)
  • Optional Yoke or Recessed Ceiling Mount Kits Available
  • Optional Half and Full Snoot Kits Available

SPECIFICATIONS

SOURCE

  • 250W 5-in-1 RGBWL (Red, Green, Blue, White, Lime LED Array
  • 50,000 Hour Average LED Life*
  • *Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA

  • 11,000 Total Lumen Fixture Output
  • CRI 90 @ 3,200K
  • 45° Lens Included

EFFECTS

  • Variable CCT 2400K - 8500K
  • Virtual Color Swatch Book
  • Dimmer, Dimmer Color, RGBWL, RGBWL 16-Bit, Standard, Extended, HSI & HSI Extended Control Options
  • Variable 16-bit Dimming Curves
  • High Speed Electronic Shutter and Strobe
  • DMX and Menu adjustable LED Refresh Rate Frequency

CONTROL / CONNECTIONS

  • 8 DMX Channel Modes
  • Standalone and Primary, Secondary Modes
  • RDM (Remote Device Management)
  • 0-10V Dimming (Current-Sink)
  • E-FLY™ Internal Extended Range Wireless DMX Transceiver
  • 4 Button Control Panel and OLED Menu Display
  • Locking 5pin XLR Connector In/Out
  • 5m Power cable preinstalled (12-24 AWG (4.0 - 0.25 mm2)
  • 5-pin Wire Terminal Block for 0-10V, DMX (24AWG / 0.25 mm2)
  • 2-pin Wire Terminal Block for 48V Emergency Battery Input  (24AWG / 0.25 mm2)

SIZE / WEIGHT

  • Length: 12.5 in. (318 mm)
  • Diameter: 7.8 in. (197 mm)
  • Weight: 15.8 lbs. (7.2 kg)

ELECTRICAL / THERMAL

  • AC 100-277V - 50/60Hz
  • Max Power Consumption 270W
  • 14°F to 113°F (-10°C to 45°C)

APPROVALS / RATINGS

  • CE
  • cETLus
  • IP20
