ENTTEC 71523 Octo Lite 8-Universe DIN Rail LED Pixel Controller

Write a Review
MPN:
71523
Availability:
This item is shipped directly from the vendor and is subject to their availability.

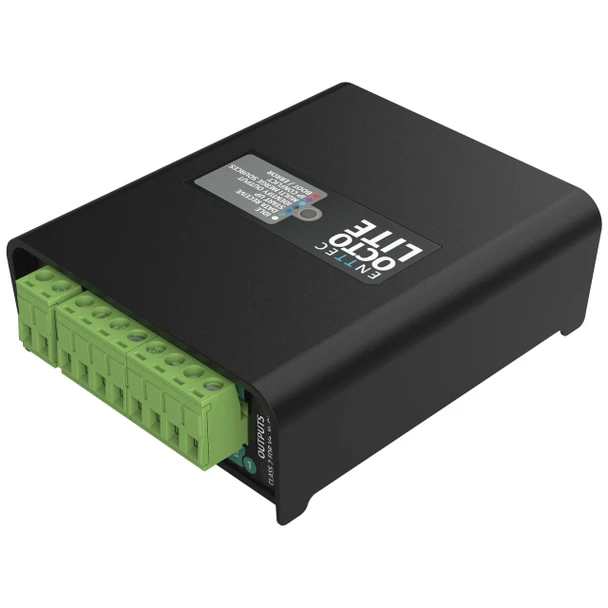

  • ENTTEC 71523 Octo Lite front top
  • ENTTEC 71523 Octo Lite top
  • ENTTEC 71523 Octo Lite bottom
  • ENTTEC 71523 Octo Lite back angle
  • ENTTEC 71523 Octo Lite side with clip
  • ENTTEC 71523 Octo Lite front
  • ENTTEC 71523 Octo Lite back with clip
  • Octo comparison chart
$141.00
Frequently bought together:

Description

ENTTEC’s OCTO LITE is a compact LED pixel controller that delivers 8 universes of eDMX-to-pixel conversion in a 4-module DIN-rail form factor. Supporting up to 1,360 RGB or 1,024 RGBW pixels per controller, this SPI pixel controller unit handles Art-Net, sACN, and ESP protocols with the same proven OCTO architecture trusted in installations worldwide.

Built for compact installations, the OCTO LITE focuses on core functionality: wide protocol support, custom protocol creation, dual Ethernet ports for network passthrough, and flexible 5-60V power input. The result is installation-grade performance in a compact package that simplifies deployment in space-constrained environments.

Perfect for architectural accent lighting, retail installations, and entertainment venues where the 8-universe capacity matches project requirements.

NOTE: The OCTO LITE does not require or use PLink Injectors.

FEATURES

  • 8 Universe output capacity
  • Custom protocol creation
  • Powered by your pixels
  • Easy daisy-chaining
  • Installer friendly design
  • International compliance

Recommended App: ELM

SPECIFICATIONS

  • Connectors:
    • (2) Network (RJ45)
    • (2) Data Port (4-pin Screw Terminal)
    • (1) Power Port (2-pin Screw Terminal)
  • IP rating: IP20
  • Input Voltage: 5-60V DC
  • Max. Power Draw: 5W
  • Max. Heat Dissipation: 4.5 W
  • eDMX Input Protocol: Art-Net, sACN, ESP
  • Network Speed: 10/100Base-T
  • Network Discovery ENTTEC's EMU software
  • Network Configuration: Static (Default 192.168.0.10) / DHCP
  • Recommended Network Device Quantity Per Chain: Chains of up to 8 devices give optimum synchronisation between outputs
  • Data Output Type: SPI (NZR)
  • Max. eDMX -> Pixel Conversion Per Device: 8 Universes (4,096 channels)
  • Max. Pixels Controllable Per Device
    • RGB: 1,360 (680 per port)
    • RGBW: 1,024 (512 per port)
  • Max Frame Rate: 100fps
  • Firmware Updates: Web Interface
  • LED Indicators:
    • Forward-facing LED indicator
    • Network link/activity (integrated into RJ45 ports)
  • Cooling Method: Convection
  • Operating Temperature: -4°F to 122°F (-20°C to 50°C)
  • Operating Humidity: 5 to 95% (non-condensing)
  • Body Material: ABS plastic
  • Mounting Options: Surface & TS35 DIN Rail mount
  • Unit Dimensions: 3.95 x 3 x 1.22 in. (100.5 x 77.9 x 31 mm)
  • Unit Weight: 0.18 lbs (0.08 kg)
  • Shipping Dimensions: 6.5 x 6 x 1.7 in. (165 x 145 x 43 mm)
  • Shipping Weight: 0.39 lbs (0.18 kg)
  • Warranty 3-year return to the base manufacturer warranty
  • Compliance: FCC (USA), RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK)
