ETC

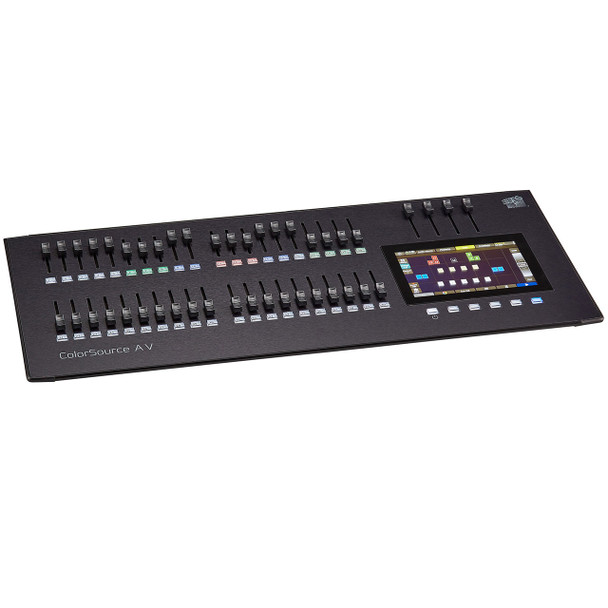

ETC ColorSource 40 AV Console
- MPN:
- 7225A1101-US
- Availability:
- This item is shipped directly from the vendor and is subject to their availability.
Description
ETC's ColorSource Consoles provide hands-on control designed for the latest technology. This affordable, portable desk specializes in streamlined, plug-and-play setup; the onboard fixture library makes traditional patching easy, and the console has the ability to recognize RDM-capable devices in the rig and auto-populate them in patch. Simply use the on-board touchscreen drag each fixture into place on a customizable stage map, and you'll be programming in minutes. Whether you're recording cues or working on the fly, these consoles you covered, with faders that can be used to play back looks and effects or to mix the perfect color in your LED lights. With the ColorSource 40AV console -play sound and visual media.
FEATURES
- 80 control channels/devices
- 7" integrated multi-touch display
- 4 user-definable master faders
- 5 user-definable buttons for common commands
- Virtual level/rate paddle
- Cue list record and playback functions
- Non-intensity parameter control
- Console lockout
- Color, Position and Beam Pallettes
- Color, intensity, position and parameter effects
- Intuitive color control of LEDs
- RDM discovery & configuration
- Onboard help system
- "Simple Mode" operation for 4 looks
- Playback Toy for live busking
COLORSOURCE 40 AV
- 80 channels / multi-parameter deviceS
- 40 Channel / Playback faders with color indication
- Two DMX/RDM ports
- Two USB ports
- RJ45 for network (sACN, ArtNet, OSC)
- Sound-to-light playback
- HDMI port for monitor or media playback
- “Amigo” browser-based remote
- 25 GB onboard storage for show files and media
SPECIFICATIONS
MECHANICAL
- One home and five configurable softkey buttons
- Four configurable function faders
- 7” color multi-touch touchscreen
PLAYBACK CONTROLS
- One cue list with 999 cues
- 10 pages of 40 playbacks
- Static memories or sequences
- Playback Toy for filtered and timed execution of playbacks
- Mulitple bump modes (Flash, Solo, Solo Change, Move/Go)
- Full-history rubberbanding for playbacks
- On-board help system
- Extensive library for controlling moving lights
PROGRAMMING TOOLS
- Color and white pickers
- Reference based Position, Color and Beam palettes
- Innovative touch-based parameter controls
- Auto fixture selection on fader moves
- Virtual Level/Rate wheel
- Cutomizable Channel display using Stage Map
- Effects (intensity, color, shape, and parameter)
- Fixture Tags for Quick Selects
- 27 Quick Select groupings
- Two independent channels
- Virtual keypad for level entry
MEDIA
- Audio input type:
- 3.5 mm (1/8”) TRS, Stereo, unbalanced
- Line in -10 dBV (316 mV RMS)
- Input Impedance: 29k ohms
- Audio output type:
- 3.5 mm (1/8”) TRS, Stereo, unbalanced
- Line out -10 dBV (316 mV RMS) at 10k ohms “Line Level”
- Load Impedance : 10k – 200k ohms
- Supported media file formats:
- Audio: mp3, aac and wav files (44.1 kHz sample rate, 4 GB maximum file size)
- Image: jpg, png, tiff, and bmp files (1280 x 720 maximum resolution)
- Please note: visual output is limited to still images and effects from the VideoToy feature of the ColorSource AV console. Movie files are not supported
REGULATORY AND COMPLIANCE
- cETLus Listed, CE Compliant
