ETC ColorSource Linear 1, Black

Write a Review
MPN:
7414A1000
Availability:
This item is shipped directly from the vendor and is subject to their availability.
Type:
Linear
Source:
LED
IP-Rating:
IP20

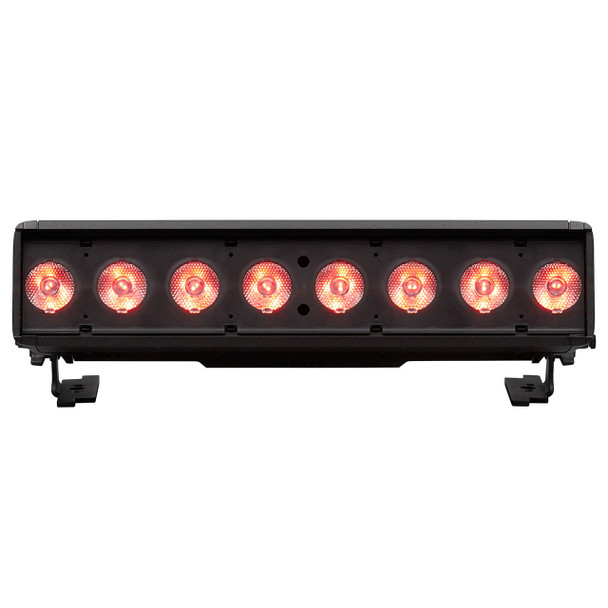

  • ETC ColorSource Linear 1 front view orange
  • ETC ColorSource Linear 1 front view blue
  • ETC ColorSource Linear 1 right view
  • ETC ColorSource Linear 1 hanging right view
  • ETC ColorSource Linear data in
  • ETC ColorSource Linear data out
  • ETC ColorSource Linear interface
  • ETC ColorSource Linear side view
  • ETC ColorSource Linear side with no filters
  • ETC ColorSource Linear side with one filter
$1,168.00

Description

ColorSource Linear combines the bright, bold output of the ColorSource family with a sleek linear design to create a versitile and affordable strip light. Whether being used to create a stunning wash of light on your stage or a wall, the ColorSource Linear uses ETC’s unique RGB-L color system to provide beautiful LED lighting.

FEATURES

  • Linear 1 (0.5 meters) - one cell of control
  • Original RGB-L LED array (red, green, blue and lime)
  • Homogenized optics
  • Simple user interface with seven-segmentdisplay
  • powerCON® in and thru power connections
  • DMX in and thru (5-pin XLR)
  • RDM or local configuration
  • LED droop compensation for consistent output
  • Optically calibrated
  • Tour-ready, aluminum housing

WHAT'S INCLUDED

  • Power cable with bare ends (no connector)
  • Pair of trunnions

COLORSOURCE LED ARRAY OPTIONS (sold separately, not interchangeable)

  • Original - RGBL (red, green, blue and lime)
  • Deep Blue - for rich, saturated blues and magentas (red, green, indigo and lime)
  • Pearl - for variable white light from 2700K to 6500K (warm white and cool white)

COLORSOURCE LENGTH OPTIONS

  • Linear 1 (0.5 meters) - one cell of control
  • Linear 2 (1 meter) - two cells of control
  • Linear 4 (2 meters) - four cells of control

SPECIFICATIONS

SOURCE

  • LEDs: 40 Lumileds LUXEON® Z LEDs
  • Max lumens: 3,039
  • Lumens per watt: 28.1
  • L70 rating (hours to 70% output)*: 55,000 hours

COLOR

  • Colors used: Red, green, blue, lime
  • Color temperature range: Color mixing fixture
  • Calibrated array: Yes
  • Red shift: No

OPTICAL

  • Beam angle range: 15.6° (Secondary lenses available for multiple beam-spread options)
  • Aperture size: 7.5 in (190 mm)
  • Camera flicker control/Hz range: 1,200 Hz (default) and 25,000 Hz (via RDM)

CONTROL

  • Input method: DMX512 via 5-pin XLR connector
  • Protocols: DMX512, RDM
  • Modes (footprint): 4 modes
  • RDM configuration: Yes
  • UI type: Seven-segment, three-button interface
  • Local control: Yes
  • Onboard presets: Yes (12)
  • Onboard sequences: Yes (5)
  • Onboard effects: No
  • Fixture-to-fixture control: Yes
  • Note 15-bit virtual dimming engine

ELECTRICAL

  • Voltage range: 100–240 VAC 50/60 Hz
  • Input method: powerCON in and thru
  • Inrush (First half-cycle): 120V 35 A / 35.6 A / 67.5 A, 240V, 49 A / 85.6 A / 153 A
  • Fixtures per circuit: 9 cells (15 A power thru connector) or 10 cells (R20 module or similar)
  • Wattage: 120 V / 240 V) Linear 1: 115 W / 112 W  Linear 2: 218 W / 213 W  Linear 4: 438 W / 426 W
    Linear 1 DB: 110 W / 108 W  Linear 2 DB: 218 W / 214 W  Linear 4 DB: 440 W / 428 W
  • Current draw: 120 V / 240 V) Linear 1: 0.95 A / 0.48 A  Linear 2: 1.82 A / 0.91 A  Linear 4: 3.68 A / 1.82 A
    Linear 1 DB: 0.92 A / 0.46 A  Linear 2 DB: 1.82 A / 0.91 A  Linear 4 DB: 3.70 A / 1.83 A

THERMAL

  • Ambient operating temp: 0°–40° C (32°–104° F)
  • Fan (controllable): Yes (No)
  • Droop compensation: Yes
  • dB range (average at 1 m): Linear 1: 24.8 dBA  Linear 2: 28.4 dBA  Linear 4: 31.0 dBA
  • BTUs/hour: (120 V / 240 V)  Linear 1: 392.38 / 382.14  Linear 2: 743.82 / 726.76  Linear 4: 1,494.46 / 1,453.51
  • Linear 1 DB: 375.32 / 368.50  Linear 2 DB: 743.82 / 730.19  Linear 4 DB: 1,501.28 / 1,460.34

PHYSICAL

  • Materials: Die-cast aluminum
  • Exterior housing color: Black
  • Mounting options: trunnions, yoke (1 cell - optional)
  • IP rating: IP20
  • Weight: 11.20 / 20.10 / 37.50 lb (5.10 / 9.12 / 17.01 kg)
  • Height: 4.29 in. (109 mm)
  • Width: 19.61 in. (499 mm) / 39.37 in. (1000 mm) / 78.40 in. (1991 mm)
  • Depth: 6.04 in. (153 mm)

INCLUDED ITEMS

  • Power cable with bare ends (no connector)
  • Trunnions

WARRANTY

  • Fixture 5 years
  • LED array 10 years

REGULATORY AND COMPLIANCE

  • cETLus Listed, Conforms to UL 1573, Certified to CSA C22.2 No. 166, CE Compliant, EAC Compliant

OPTIONAL ACCESSORIES

  • Safety cable
  • C-Clamp
  • ColorSource Linear 1 yoke
  • ColorSource Linear 1 double-yoke
  • ColorSource Linear barn door
  • ColorSource Linear louver
  • Secondary lenses available for multiple beam-spread options
  • powerCON to powerCON fixture jumper cable
