ETC

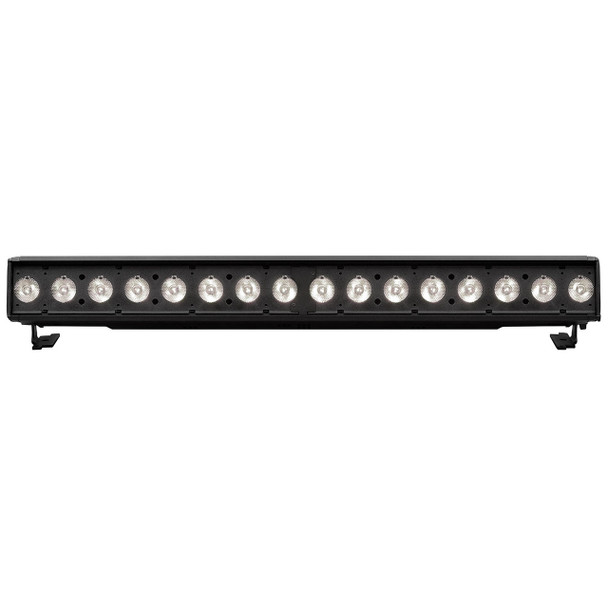

ETC ColorSource Linear 2 Pearl - Black
- MPN:
- 7414A1061
- Availability:
- This item is shipped directly from the vendor and is subject to their availability.
- Type:
- Linear
- Source:
- LED
- IP-Rating:
- IP20
Description
ColorSource Linear Pearl is a variable white-light LED wash fixture that utilizes a mix of two different white LEDs—a mix that lets you set the color temperature anywhere between 2700 K and 6500 K. The Pearl array provides the same high quality construction and great feature set as its full color siblings, including an impressively bright output and simple user interface.
Designed for installations that depend heavily on white light such as studios, houses of worship, and architectural installations, this array features flicker-free operation and a smooth dimming curve.
FEATURES
- Linear 2 (1 meters) - two cells of control
- Warm White and Cool White LED array for a 2700K to 6500K variable white light
- Homogenized optics
- Simple user interface with seven-segmentdisplay
- powerCON® in and thru power connections
- DMX in and thru (5-pin XLR)
- RDM or local configuration
- LED droop compensation for consistent output
- Optically calibrated
- Tour-ready, aluminum housing
COLORSOURCE LED ARRAY OPTIONS (sold separately, not interchangeable)
- Original - RGBL (red, green, blue and lime)
- Deep Blue - for rich, saturated blues and magentas (red, green, indigo and lime)
- Pearl - for variable white light from 2700K to 6500K (warm white and cool white)
COLORSOURCE LENGTH OPTIONS
- Linear 1 (0.5 meters) - one cell of control
- Linear 2 (1 meter) - two cells of control
- Linear 4 (2 meters) - four cells of control
SPECIFICATIONS
SOURCE
- LEDs: 80 Lumileds LUXEON® Z LEDs
- Max lumens: 11,298
- Lumens per watt: 50
- L70 rating (hours to 70% output)*: >60,000 hours
COLOR
- Colors used: Warm white, cool white
- Color temperature range: 2700–6500 K
- Calibrated array: Yes
- Red shift: No
OPTICAL
- Beam angle range: 15° (Secondary lenses available for multiple beam-spread options)
- Camera flicker control/Hz range: 1,200 Hz (default) and 25,000 Hz (via RDM)
CONTROL
- Input method: DMX512 via 5-pin XLR connector
- Protocols: DMX512, RDM
- Modes (footprint): 3 modes
- RDM configuration: Yes
- UI type: Seven-segment, three-button interface
- Local control: Yes
- Onboard presets: Yes (12)
- Onboard sequences: No
- Onboard effects: No
- Fixture-to-fixture control: Yes
- Note: Local level control via UI
ELECTRICAL
- Voltage range: 100–240 VAC 50/60 Hz
- Input method: powerCON in and thru
- Inrush (First half-cycle): 120V 35.6 A, 240 V 85.6
- Fixtures per circuit: 10 cells (20 A switched circuit, R20 module or similar)
- Wattage: 120V 219 W, 240 V 214 W
- Current draw: 120V 1.83 A, 240 V 1.00 A
THERMAL
- Ambient operating temp: 0°–40° C (32°–104° F)
- Fan (controllable): Yes (No)
- Droop compensation: Yes
- dB range (average at 1 m): 28.4 dBA
- BTUs/hour: 747
PHYSICAL
- Materials: Die-cast aluminum
- Exterior housing color: Black
- IP rating: IP20
- Weight: 20.10 lb (9.12 kg)
- Height: 4.29 in. (109 mm)
- Width: 39.37 in. (1000 mm)
- Depth: 6.04 in. (153 mm)
INCLUDED ITEMS
- Power cable with bare ends (no connector)
- Pair of trunnions
WARRANTY
- Fixture 5 years
- LED array 10 years
REGULATORY AND COMPLIANCE
- cETLus Listed, Conforms to UL 1573, Certified to CSA C22.2 No. 166, CE Compliant, EAC Compliant
OPTIONAL ACCESSORIES
- Safety cable
- C-Clamp
- ColorSource Linear barn door
- ColorSource Linear louver
- Secondary lenses available for multiple beam-spread options
- powerCON to powerCON fixture jumper cable
