ETC

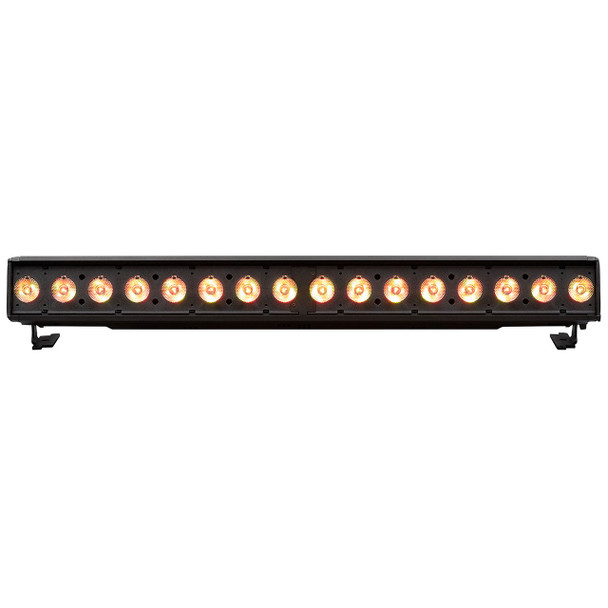

ETC ColorSource Linear 2, Black
- MPN:
- 7414A1001
- Availability:
- This item is shipped directly from the vendor and is subject to their availability.
- Type:
- Linear
- Source:
- LED
- IP-Rating:
- IP20
Description
ColorSource Linear combines the bright, bold output of the ColorSource family with a sleek linear design to create a versitile and affordable strip light. Whether being used to create a stunning wash of light on your stage or a wall, the ColorSource Linear uses ETC’s unique RGB-L color system to provide beautiful LED lighting.
FEATURES
- Linear 2 (1 meters) - two cells of control
- Original RGB-L LED array (red, green, blue and lime)
- Homogenized optics
- Simple user interface with seven-segmentdisplay
- powerCON® in and thru power connections
- DMX in and thru (5-pin XLR)
- RDM or local configuration
- LED droop compensation for consistent output
- Optically calibrated
- Tour-ready, aluminum housing
WHAT'S INCLUDED
- Power cable with bare ends (no connector)
- Pair of trunnions
COLORSOURCE LED ARRAY OPTIONS (sold separately, not interchangeable)
- Original - RGBL (red, green, blue and lime)
- Deep Blue - for rich, saturated blues and magentas (red, green, indigo and lime)
- Pearl - for variable white light from 2700K to 6500K (warm white and cool white)
COLORSOURCE LENGTH OPTIONS
- Linear 1 (0.5 meters) - one cell of control
- Linear 2 (1 meter) - two cells of control
- Linear 4 (2 meters) - four cells of control
SPECIFICATIONS
SOURCE
- LEDs: 80 Lumileds LUXEON® Z LEDs
- Max lumens: 6,078
- Lumens per watt: 28.1
- L70 rating (hours to 70% output)*: 55,000 hours
COLOR
- Colors used: Red, green, blue, lime
- Color temperature range: Color mixing fixture
- Calibrated array: Yes
- Red shift: No
OPTICAL
- Beam angle range: 15.6° (Secondary lenses available for multiple beam-spread options)
- Aperture size: 7.5 in (190 mm)
- Camera flicker control/Hz range: 1,200 Hz (default) and 25,000 Hz (via RDM)
CONTROL
- Input method: DMX512 via 5-pin XLR connector
- Protocols: DMX512, RDM
- Modes (footprint): 4 modes
- RDM configuration: Yes
- UI type: Seven-segment, three-button interface
- Local control: Yes
- Onboard presets: Yes (12)
- Onboard sequences: Yes (5)
- Onboard effects: No
- Fixture-to-fixture control: Yes
- Note 15-bit virtual dimming engine
ELECTRICAL
- Voltage range: 100–240 VAC 50/60 Hz
- Input method: powerCON in and thru
- Inrush (First half-cycle): 120V 35.6 A, 240V 85.6 A
- Fixtures per circuit: 9 cells (15 A power thru connector) or 10 cells (R20 module or similar)
- Wattage: 120 V 218 W, 240 V 213 W
- Current draw: 120 V 1.82 A, 240 V 0.91 A
THERMAL
- Ambient operating temp: 0°–40° C (32°–104° F)
- Fan (controllable): Yes (No)
- Droop compensation: Yes
- dB range (average at 1 m): 28.4 dBA
- BTUs/hour: 120 V 743.82, 240 V 726.76
PHYSICAL
- Materials: Die-cast aluminum
- Exterior housing color: Black
- IP rating: IP20
- Weight: 20.10 lb (9.12 kg)
- Height: 4.29 in. (109 mm)
- Width: 39.37 in. (1000 mm)
- Depth: 6.04 in. (153 mm)
INCLUDED ITEMS
- Power cable with bare ends (no connector)
- Pair of trunnions
WARRANTY
- Fixture 5 years
- LED array 10 years
REGULATORY AND COMPLIANCE
- cETLus Listed, Conforms to UL 1573, Certified to CSA C22.2 No. 166, CE Compliant, EAC Compliant
OPTIONAL ACCESSORIES
- Safety cable
- C-Clamp
- ColorSource Linear barn door
- ColorSource Linear louver
- Secondary lenses available for multiple beam-spread options
- powerCON to powerCON fixture jumper cable
