ETC

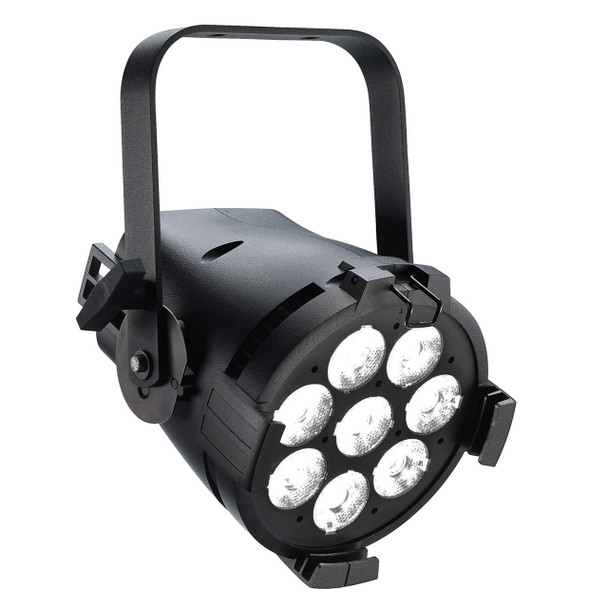

ETC ColorSource PAR Pearl, Black
- MPN:
- 7412A1002
- Availability:
- This item is shipped directly from the vendor and is subject to their availability.
- Type:
- Par
- Source:
- LED
- IP-Rating:
- IP20
Description
ColorSource PAR Pearl is a variable white-light LED wash fixture that utilizes a mix of two different white LEDs. This mixture enables you to set the color temperature anywhere between 2700 K and 5600 K. The Pearl array provides the same great feature set and high quality construction as its full color siblings, including an impressively bright output and simple user interface.
Designed for installations that depend heavily on white light such as studios, houses of worship, and architectural installations, this array features flicker-free operation and a smooth dimming curve.
FEATURES
- Variable CT from 2700 K to 6500 K
- Homogenized optics
- Simple user interface with seven-segment display
- powerCON® in and thru
- 5-pin XLR
- LED droop compensation
- Optically calibrated
- Tour-ready, aluminum housing
WHAT'S INCLUDED
- Hanging yoke
- Power cable with connector of choice
COLORSOURCE LED ARRAY OPTIONS (sold separately, not interchangeable)
- Original RGB-L (Red, Green, Blue, Lime)
- Deep Blue RGI-L (Red, Green, Indigo, Lime)
- Pearl (Warm and Cool White)
SPECIFICATIONS
SOURCE
- LED details 40 Lumileds LUXEON® Z LED
- Max lumens: 5,709
- Lumens per watt: 50
- L70 rating (hours to 70% output): >60,000 hours*
COLOR
- Colors used: warm white, cool white
- Color temperature range: 2700–6500 K
- Calibrated array: Yes
- Red shift: No
OPTICAL
- Beam angle range: 15° (secondary lenses available for multiple beam-spread options)
- Aperture size: 7.5 in (190 mm)
- Camera flicker control/Hz range: 1,200 Hz (default) 25,000 Hz (via RDM)
CONTROL
- Input method: DMX512 via 5-pin XLR connector
- Protocols: DMX512, RDM
- Modes (footprint): 3 modes
- RDM configuration: Yes
- UI type: Seven-segment address display
- Local control: Yes
- Onboard presets: Yes (12)
- Onboard sequences: No
- Onboard effects: No
- Fixture-to-fixture control: Yes
- Note: Local level control via UI
ELECTRICAL
- Voltage range: 100–240 VAC 50/60 Hz
- Input method: powerCON power in and thru
- Inrush (First half-cycle): 120 V 35 A, 240 V 49 A
- Fixtures per circuit 10 (20 A switched circuit, R20 module or similar)
- Wattage typical: 120 V 114 W, 240 V 112 W
- Current draw: 120 V 0.75 A, 240 V 0.40 A
THERMAL
- Ambient operating temp: 0°–40° C (32°–104° F)
- Fan (controllable): Yes (No)
- Droop compensation: Yes
- dB range: 24.8 dBA average at 1 m
- BTUs/hour: 389
PHYSICAL
- Materials: Die-cast, all metal housing
- Exterior housing color: Black
- Mounting options: Yoke, floor stand yoke (available as an accessory)
- IP rating: IP20
- Weight: 8.3 lb (3.77 kg)
- Height: 12.20 in. (310 mm)
- Width: 7.98 in. (203 mm)
- Depth: 9.45 in. (240 mm)
INCLUDED ITEMS
- Hanging yoke
- Power cable with connector of choice
WARRANTY
- Fixture 5 years
- LED array 10 years
REGULATORY AND COMPLIANCE
- cETLus Listed
- Conforms to UL 1573 Listed, Conforms to UL 924 Listed
- Certified to CSA C22.2 No. 166 Listed, Certified to CSA C22.2 No. 141 Listed
- CE Compliant
- EAC Compliant
OPTIONAL ACCESSORIES
- Safety cable
- Secondary lenses for multiple beam-spread options
- Top hat
- Egg crate louver
- Yoke with floor-stand attachment
- Weighted base
- powerCON to connector type of choice
- powerCON to powerCON fixture jumper cable
