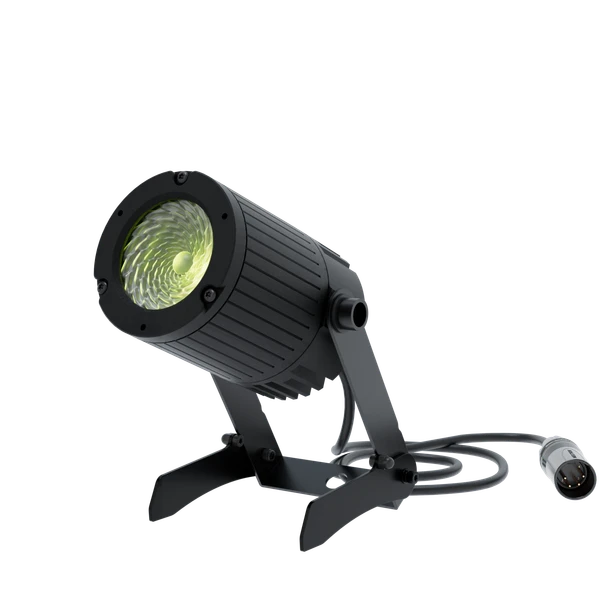

GLP X5 Dot Wash

The GLP X5 Dot has been designed to solve the problem of getting great light quality and high CRI from a small LED based fixture that is no larger than an MR16 Birdie.

The GLP X5 Dot Wash uses a 40W RGBL LED from the impression X5 Series to give high CRI across a large color gamut and has been critically acclaimed across the theatrical and televisual markets. Its small body and sleek design allow it to be tucked into small locations – whether seen or unseen.

It features 16-bit color control and an color match to the X5 Series. The integrated exclusive Twist-Zoom-Mecha- nism allows manual zoom from 16 to 68 degrees without altering the fixture’s body. Its IP65 rating ensures plenty of use options. The X5 Dot runs on 24 – 48 V DC from any external power source and can run wirelessly or wired for data.

FEATURES

• 40 W RGBL LED from X5 Series at up to 20 W power
• Innovative Twist-Zoom-Mechanism
• Super compact low weight with only 580 g

SPECIFICATIONS

LIGHT SOURCE

• Type: RGBL LED
• Power 10 – 20 W
• Count 1

OPTICAL SYSTEM

• Output: up to 550 lm
• Max. Peak Luminous Intensity: 4.58 kcd
• Min. Zoom: 16°
• Max. Zoom: 68°
• Zoom Ratio: 1:5
• Light Aperature Diameter: 1.96 in. (50 mm)

DYNAMIC EFFECTS

• Dimmer: 16 bit

CONTROL & PROGRAMMING

• DMX Channels: tbd
• Control Modes: tbd
• Protocols:
  • DMX (USITT DMX512-A)
  • RDM (ANSI/ESTA E1.20)
  • GLP iQ.Mesh
• High-Res Channels: Dimmer
• Setting and Addressing: DMX, RDM, GLP iQ.Mesh
• Firmware Update: DMX Link via DProg, GLP iQ.Mesh, GLP iQ.Tool

CONNECTIONS

• Power & Signal Connection: Combined Power/Date Cable Tail, 750 mm; with XLR 4-Pin connector mail

ELECTRICAL SPECIFICATIONS

• Power Input: 24 – 48 V DC
• Power Supply Unit: External, not included

THERMAL SPECIFICATIONS

• Cooling Type: Convection
• Min. Ambient Temperature: -10 °C / 14 °F
• Max. Ambient Temperature 45 °C / 113 °F
• Thermal Protection: Automatic
• Total Heat Dissipation: 70 BTU/h

INSTALLATION

• Mounting: 2x 3/8" and 1/4" 20 UNC thread|, combined hanging, floor stand yoke
• Orientation: Any, horizontal sideway, vertical hanging
• Location: Indoor, outdoor

CONSTRUCTION

• Housing Color: Black
• Material: High-impact flame-resistant thermoplastic, aluminum
• Protection Rating: IP65

DIMENSIONS & WEIGHT

• Weight Net: 1.28 lbs (580 g)
• X5 Dot MPN: 7725
