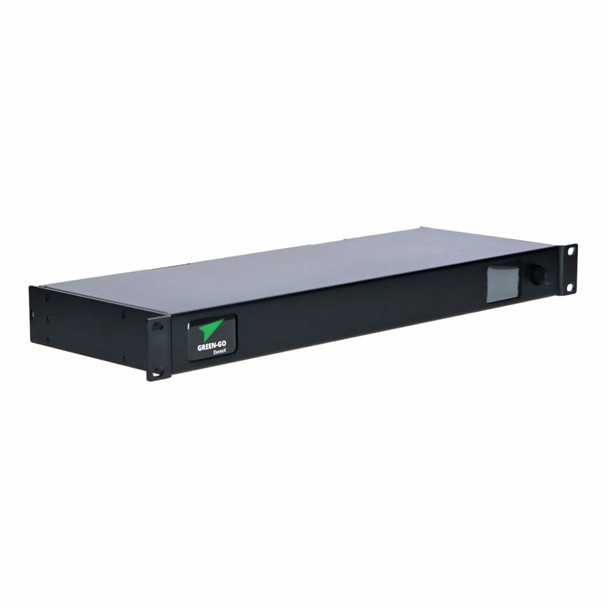

Green-Go DNTI Dante Interface

The Green-GO Dante X is an audio interface for the Green-GO digital intercom system, designed to connect Dante audio streams directly to and from the Green-GO network without analog conversion.

It supports up to 8 Dante audio streams in total, with 4 inputs and 4 outputs, allowing audio to be injected into or extracted from the Green-GO system for applications such as program audio, announcements and external signal distribution. Each of the 4 dual ports can operate in full user mode or as a general-purpose line input or output.

A large full color TFT display provides a clear overview of transmitted and received audio signals and levels, while also enabling fast setup and menu navigation. All Green-GO ports can be configured individually on the device, while Dante ports are managed through Dante Controller.

As part of the decentralized Green-GO system, the Dante X requires no central matrix or separate interface, allowing seamless integration with other Green-GO devices. It stores intercom routing data, system setup and preferences locally, and can be configured using the free Green-GO Control software.

FEATURES

• Connects up to 8 Dante audio streams with 4 inputs and 4 outputs
• Direct digital audio conversion between Dante and Green-GO
• 4 etherCON ports with integrated 100 Mbit switch (2 Green-GO network and 2 Dante network)
• Seamlessly scalable with other Green-GO Beltpacks, Multi-Channel Stations and interfaces
• Dante port management through Dante Controller
• Powered via Power over Ethernet compliant with IEEE 802.3af or external 12 V DC power supply
• Intercom routing data, system setup and preferences stored locally
• Local control via color display with rotary encoder and pushbutton selector
• Configuration and management with the free Green-GO Control software
