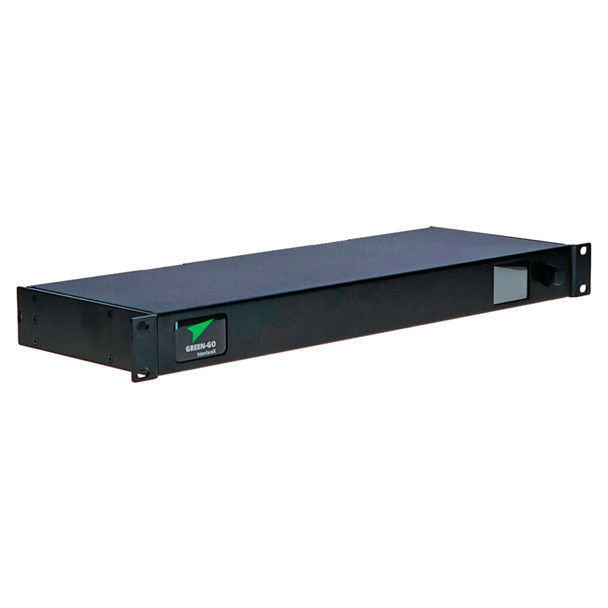

Green-Go INTERFACE X Audio Interface, 2 x 4-wire and 2-wire 1U

The Green-GO InterfaceX is an audio interface for the Green-GO digital intercom system, designed to connect 2-wire and 4-wire analogue intercom systems to the Green-GO Ethernet network.

It features dual 3-pin XLR in and output ports for 4-wire intercom connection, allowing two separate audio signals or a stereo signal to be injected into and extracted from the Green-GO network. A separate 3-pin XLR connection is provided for linking a basic analogue 2-wire intercom or partyline system.

All ports can be configured individually through the setup menu, allowing flexible integration with existing matrices and analogue interfacing products. Two GPIO connectors on the rear panel provide additional contact closure connectivity for system integration and control.

FEATURES

• Connects 2-wire and 4-wire analogue intercom systems to the Green-GO network
• Audio injection and extraction for program audio, announcements and external sources
• 2 line-audio inputs (XLR 3-pin female), 2 line-audio outputs (XLR 3-pin male)
• 1 2-wire port (XLR 3-pin female) with switchable termination
• 2 GPIO ports (D-Sub 9), each supporting 2 inputs and 2 outputs for contact closures
• 2 EtherCON ports with integrated 100 Mbit switch
• Seamlessly scalable with other Green-GO Beltpacks, Multi-Channel Stations and interfaces
• Powered via Power over Ethernet compliant with IEEE 802.3af or external 12 V DC power supply
• Intercom routing data, system setup and preferences stored locally
• Local control via color display with rotary encoder and pushbutton selector
• Configuration and management with the free Green-GO Control software
