Green-Go MCX Multichannel X 32-Channel Key Panel

The Green-GO Multichannel X is a rack-mount user station for the Green-GO digital intercom system, featuring 32 multicolour push-buttons, three full colour TFT touchscreens, an internal loudspeaker, a 3-pin XLR microphone input, a 4-pin XLR headset connector, line audio in and out and GPIO connectivity.

It provides direct access to 32 separate users or groups, with each button assignable to an individual user or a group. The three touchscreens display channel names, volume levels and status information, while the adjacent buttons control functions such as Talk, Listen, Call and Cue.

The system can be expanded with Multichannel X Extension extension units, with up to 9 extensions daisy-chained to a single Multichannel X master. As part of the decentralized Green-GO system, the Beltpack X requires no central matrix or routing engine, eliminating a single point of failure and allowing easy system expansion. Powered via PoE, it stores all matrix data locally and can be configured using the free Green-GO Control software.

FEATURES

• Seamlessly scalable with other Green-GO Beltpacks, Multi-Channel Stations and interfaces
• Matrix-free architecture with no separate interface required
• Powered via Power over Ethernet compliant with IEEE 802.3af or external DC power supply
• Intercom routing data, system setup and preferences stored locally
• Three full colour TFT touchscreens for channel name, level and status information
• Direct access to 32 users or groups through 32 multicolour push-buttons
• Push-rotary encoder for level control, channel selection and settings adjustment
• Integrated loudspeaker
• 3-pin XLR microphone input with 48V phantom power
• 4-pin XLR headset connector
• 3-pin XLR line audio input and output
• GPIO connectivity with 2 inputs and 2 outputs
• Two EtherCON LAN ports with integrated 100 Mbit switch

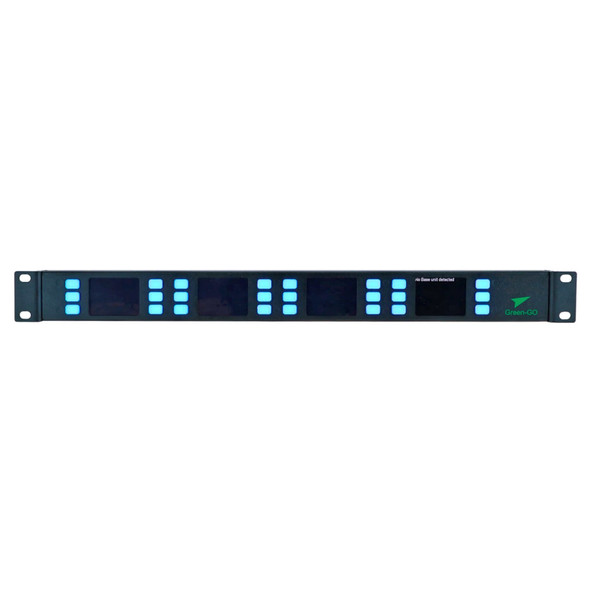

• Expandable with up to 9 MCXEXT or MCXDEXT extension units
• Configuration and management with the free Green-GO Control software
