Lex EverGrip Molded 19-Pin Multi-Conductor Cable 125 ft

The Lex Products EverGrip is molded LSC19 multi-conductor cable with molded Lex 6-circuit connectors, ground conductors bonded. Multi-cable carries 6-circuits of lighting power inside a single jacket, saving six individual runs of cable. This cable has a rating of 20 Amp, 6-circuit, 300 VAC, 12 AWG, 14 conductors.

• Thermoplastic resin premold creates a bond between the cable and connector for superior strain relief and secure terminations
• Pins and sockets cannot push back, extending life of the connector
• Rugged construction helps prevent broken conductors and loose or damaged ground rings
• Keyed design prevents misalignment of circuit conductors and unmateable or mismatched connections
• Thermoplastic elastomer overmold absorbs impact and provides an insulated and secure gripping surface for easier mating and safe handling
• Multi-cables carry 6-circuits of lighting power inside a single jacket, avoiding 6 individual runs of cable
• Specially formulated thermoplastic rubber jacket provides exceptional fLexibility and durability
• Available in 12, 14 and 16 AWG to meet specific requirements
• 14 conductor multi-cable offers two lower weight options when bonded grounds are accepted
• Tempered spring female contacts maintain constant pin pressure to help ensure low resistance connections
• Silver-plated brass contacts for high conductivity
• All black construction blends into scenery and is ideal for stage or studio lighting applications

SPECIFICATIONS

• Rating: 20 Amp, 125 VAC, Single Pole, 2-Pole, 3-Wire
  • NOTE: Maximum when used with 50% diversity of load (in accordance with table NEC 520-44)
• Male Connector: (1) Molded 20A 19-Pin Male (Plug), Black
  • NOTE: Six ground contacts are combined through the use of a ground ring to two ground conductors
• Cable Gauge: 12 AWG, 14 conductor TPR
• Cable/Cord: #12/14 Type TPR, Black
• Length: 125 ft.
• Female Connector: (1) Molded 20A 19-Pin Female (Connector), Black
  • NOTE: Six ground contacts are combined through the use of a ground ring to two ground conductors;

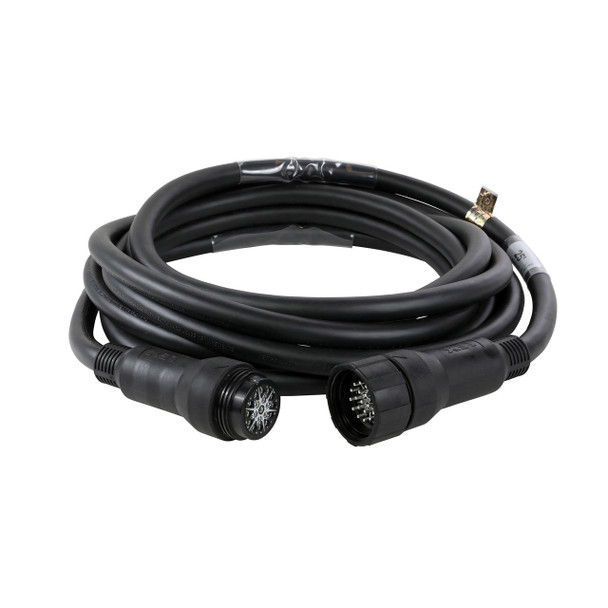

NOTE: Image shows a 25 ft cable, but you will receive a 125 ft cable.
