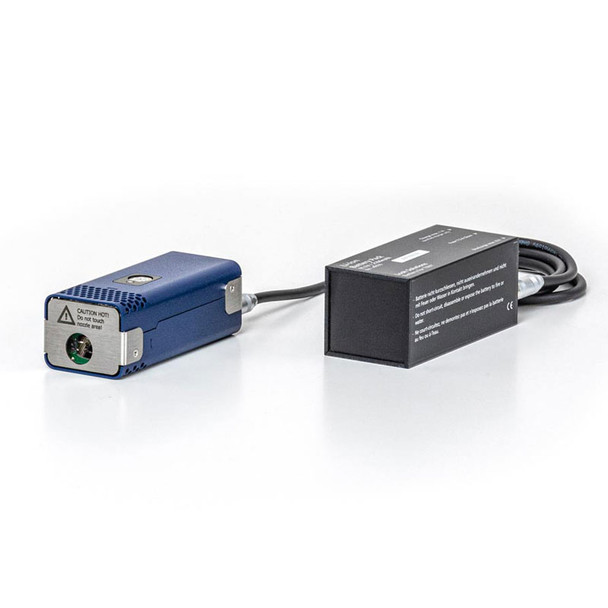

Look Solutions Tiny FX

The Look Solution Tiny FX is the latest, modified version of the successful Tiny series. The design and also some components have been changed: Due to the installation of a smaller, efficient pump, dimensions and weight could be reduced again.

The fluid reservoir can be screwed directly into the machine. Thus, an external fluid tank and fluid tube are not necessary and the Tiny FX only has two components: machine and battery pack.

WHAT'S INCLUDED

• Battery pack 11.1 V
• Battery cable
• Charger
• Cable remote incl. cable
• 6 Fluid reservoirs with 5 ml
• Refill set
• 250 ml Tiny-Fluid
• Carrying case

FEATURES

• Very small dimensions
• Battery supplies energy only when necessary
• Warm up time less than 1 sec.
• Continuous output
• Fogging time programmable
• Minimal fluid consumption
• Trigger directly at the machine, with cable remote and optionally with radio remote, DMX converter or Timer
• Carrying case
• Manufactured in Germany

SPECIFICATIONS

• Procedure: Vaporizing fog generator
• Power requirement: 70 Watt
• Voltage: 12 V with battery
• Warm up time: 1 sec.
• Fluid consumption: 2.3 ml/min. at cont. output
• Fluid tank capacity: 5 ml
• Fogging time: programmable, approx. 15 min. continuous output or 200 x 5 second bursts
• Temperature control: Microprocessor controlled
• Control: 3.5 mm mini stereo jack socket
• Dimensions (L x W x H) Tiny FX: 9.8 x 4.4 x 3.4 cm, Battery: 10.5 x 4.4 x 4.1 cm
• Weight: Tiny FX: 180 g, battery: 200 g
