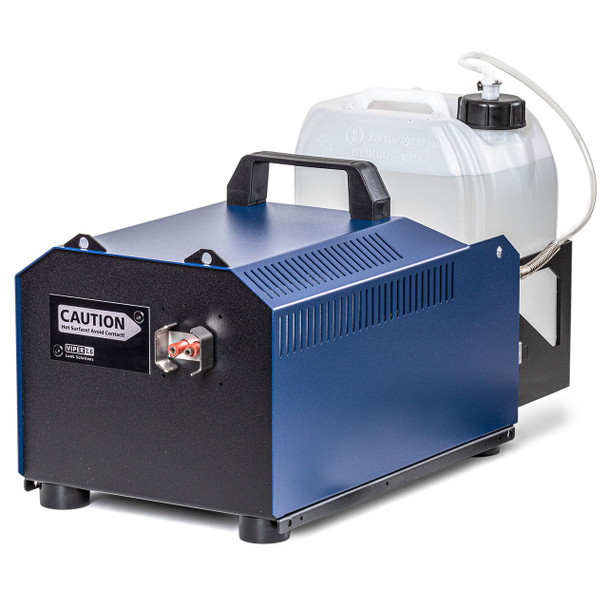

Look Solutions Viper 2.6 Fog Machine (230v Model)

The Look Solutions Viper 2.6 is a very high output 2600 watt fog generator. It is similar cosmetically to the Viper NT, but with double the output. With built in DMX and timer, and an optional remote, the Viper 2.6 is a work horse for larger events that require heavy coverage. This particular machine pairs very well with the CryoGate low fog converter. Only available in 230V version. The Viper 2.6 comes with a 5 liter bottle of Regular Fog fluid.

FEATURES

• Control panel – The control panel with LED-display, simple symbols allow for easy operation. It also protects the control buttons against dirt.
• Finest adjustments of the output – Digital technology makes fine adjustment of the pump possible. In steps of 1% the output can be adjusted from 0 – 99%. Thus, any desired effect from a tiny fog cloud to the thickest fog can be produced. This enables the Viper 2.6 to be used in both small and large locations.
• DMX 512 as standard – The Viper 2.6 can be controlled via DMX 512. The connection is done with 5pin-XLR-plugs. The DMX start address can be adjusted and saved via the control panel. If an external fan is connected to the machine it can be controlled via DMX as well. The machine can also be controlled with analog (0 – 10 V) via a lighting desk or via XLR-remote (option). This connection is done with 3pin-XLR- plugs. A stand-alone-mode is also possible. The adjustments are done directly at the machine. A short press at the start button makes the machine run. Therefore a permanent pressing of the start button is unnecessary.
• Internal timer – With the internal timer the fog time can be exactly adjusted in seconds, the wait time in minutes and the output in %.
• Connector for external fan – An external fan with max. 800 watts can be connected to the Viper 2.6.
• Safety – On the front and the back part of the cover there are fixing points for safety bonds. At both sides of the bottom of the machine are three wholes to which a hanging yoke complete with a collecting tray for fluid drips can be fixed.

FLUID – The following Look-fog fluids are available for the Viper 2.6:

• Quick-Fog (thick, quick disappearing fluid)
• Regular-Fog (thick, long lasting fluid)
• Slow-Fog (thick, extremly long lasting fluid)

SPECIFICATIONS

• Power requirement: 2600 Watt
• Voltage: 230V/50Hz
• Warm up time: approx. 7 min.
• Fluid consumption
  • at max. output: 240 ml/min.
  • at continuous output: 70 ml/min.
• Fluid tank capacity: 5 liter
• Fog output: adjustable in 99 steps
• Output projection: max. 25 m
• Fogging time at < 50% output: continuous output
• External Fan: max. 800 Watt
• Air quantity: adjustable in 99 steps
• Control
  • DMX 512
  • 0 - 10 V analog
  • Stand-alone-Mode
  • Radio remote (Option)
• Temperature control: Microprocessor controlled
• Overheating protection: Heater block/Thermostat Pump/Thermal switch
• Dimensions L x W x H: 20.5 x 9 x 9.8 in. (52 x 23 x 25 cm)
• Weight without bottle: approx. 26.5 lbs. (12 kg)
• Shipping Dimensions: 25 x 15 14 in.
• Shipping Weight: 40 lbs
