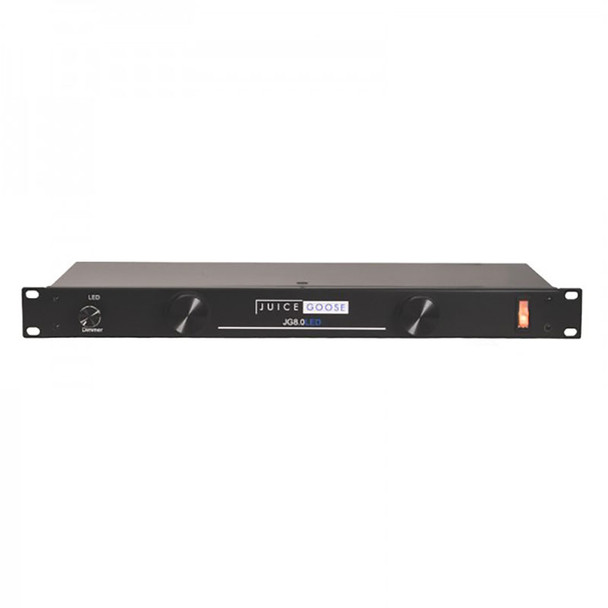

LynTec/Juice Goose JG 8LED Power Distribution Rackmount 8-Outlet

The Juice Goose JG 8LED simplifies installations by combining dependable power distribution with built-in, adjustable task lighting. Designed for poorly lit equipment racks and closets, it features two slide-out, dimmable LED light tubes that provide cool, targeted illumination right where it’s needed. The long-lasting LEDs are housed in durable aluminum tubes that can be rotated to direct the light, then retracted neatly into the chassis for storage.

Beyond lighting, the JG 8LED is a robust power distribution unit. It provides eight rear outlets, rotated to accommodate bulky 'wall wart' power adapters without blocking adjacent receptacles. Basic onboard power conditioning includes spike and AC noise suppression to protect connected equipment, ensuring clean, stable power for your essential gear. It is a practical, essential accessory for any professional rack build.

FEATURES

• Integrated LED Rack Lights – Two slide-out, dimmable LED tubes provide convenient, cool-running task lighting.
• IEight Rear Outlets – Provides ample connections for typical rack-mounted equipment in a single 1U space.
• IAdapter-Friendly Layout – Rear outlets are rotated to easily accommodate bulky ‘wall wart’ style power supplies.
• IBasic Power Conditioning – Onboard spike and AC noise suppression protects connected equipment from common power issues.
• IDurable 1U Chassis – A robust, seven-inch deep steel chassis is designed for permanent rack installation.
• IFront Panel Control – A primary power switch and light dimmer control are located on the front for easy access..

SPECIFICATIONS

ELECTRICAL

• Input Voltage: 120VAC, 60 Hz
• Current Capacity: 12 Amps
• Current Overload Protection: 15 Amps
• Power Output Receptacles: 8 NEMA 5-15R (back)
• AC Line Filtration: Line Capacitor (Line & Neutral)
• Voltage Spike Protection: Metal Oxide Varistor (MOV), (Line & Neutral)

LIGHTING

• Light Type: LED
• Features: Dimmable, Slide-out, Rotatable
• Control: Front panel dimmer knob

PHYSICAL

• Circuit Breaker: Back panel, 15A
• Chassis: Steel, Black
• Form Factor: 1U Rack mount
• Power Cord: 15 Amps, 6 foot 16/3 SJT with NEMA 5-15P Plug
• Dimensions: 19W x 7D x 1.75H in.
• Weight: 5.5 lbs
• Warranty: Three years
