LynTec KIN-1000 Line Interactive 600W UPS

Save money and space with this economical, single rack space UPS. The KIN 1000 is rated for a maximum 600 watt work load and will support that for three minutes. Smaller loads will run for proportionally longer periods. Automatic voltage regulation ensures output voltage is maintained near standard operating levels.

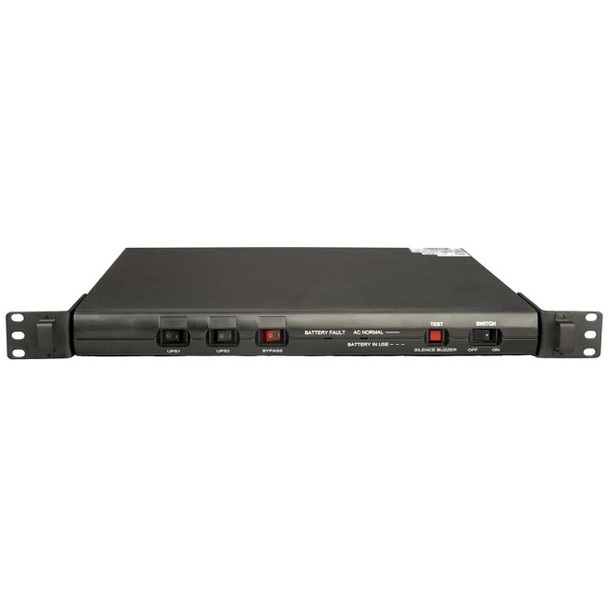

Other power protection features include AC line filtration and surge protection. Three individual banks of outlets on the back of the unit can be switched from the front panel to conserve battery power in the event of a blackout. The front panel also con- tains battery and power fault indicators plus a master power switch.

Conventional, lead-acid batteries are replaceable after a typical three to five year ser- vice life. Product and battery warranties are one year.

FEATURES

• 600 Watts (1,000 VA)
• Single rack space
• Line interactive (voltage regulating) design for over or under voltage conditions
• Telephone and Modem surge suppression ports
• Power line EMI / RFI noise filter
• Power line surge protection
• Power and battery fault status LEDs
• Replaceable batteries

FEATURES

INPUT

• Capacity: 1000 VA, 600 Watt
• Voltage: 120 VAC
• Frequency: 50 or 60 Hz + / - 10% (auto sensing)

OUTPUT

• Voltage (on battery): Simulated sine wave, + / - 25% of line input
• Frequency (on battery): 50 or 60 Hz + / - 0.5%
• Automatic Voltage Regulation: Increases output voltage 15% when input voltage drops 9% to 25% below standard. Decreases output voltage 10% when voltage rises 9% to 25% above standard
• Transfer time to battery: 24 milliseconds

PROTECTION

• Spike protection: 320 Joules
• EMI / RFI filter: 10dB @ 0.15MHz, 50dB @ 30MHz
• Current overload protection: 60 seconds @ 110%, 3 seconds @130%

INDICATORS

• Load on battery power: Slow beeping
• Battery low: Rapid beeping
• Overload: Continuous alarm sound

BATTERY

• Type: Sealed lead acid, maintenance free
• Quantity: (3) 6V, 8AH
• Recharge time (typical): 8 hours to 90% of capacity
• Protection: Automatic self test. Replace battery indicator
• Backup time: 3 - 180 minutes, depending on load

PHYSICAL

• Chasis: 1U Rack mount
• Dimensions (W x D x H): 15.0 x 14.3 x 1.7 in.
• Weight: 25.3 lbs
• Line cord: 6 ft, NEMA 5-15P
• Receptacles: (4) NEMA 5-15R battery, (1) NEMA 5-15R bypass

ENVIRONMENT

• Operating temperature: 32 - 104 degrees F
• Audible noise: None
• Max altitude: 11,500 ft above sea level
