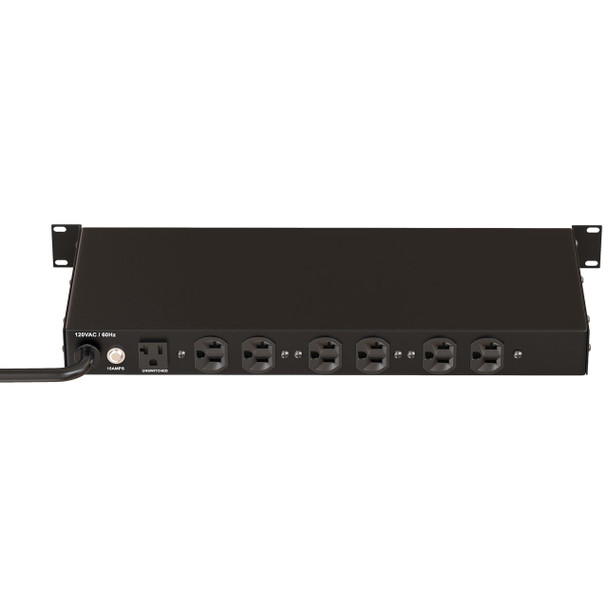

LynTec RX100-20A Surge Protection & Conditioner 9-Outlet

The RX 100-20A delivers dependable power conditioning for professional AVL racks. It integrates Juice Goose’s proven Hybrid Filter Technology, which actively protects connected equipment from damaging power surges and high-frequency noise across hot, neutral, and ground lines. This ensures a cleaner power signal, which is critical for the stable operation of sensitive digital audio and video components.

Engineered for durability in demanding environments, the unit features a sturdy Tour Class chassis and provides over-voltage shutdown for an added layer of protection. With a maximum surge let-through of just 10 volts between line and neutral and only 0.5 volts on the ground, the RX 100-20A helps prevent operational failures and improves the performance of your entire system.

FEATURES

• 20 Amp Capacity – Provides robust power distribution for fully loaded professional audio and video racks.
• Hybrid Filter Technology – Reduces common and normal mode noise for cleaner power and improved system performance.
• Advanced Surge Protection – Limits voltage let-through to a maximum of 10V (L-N) and 0.5V on ground.
• Over-Voltage Shutdown – Automatically disconnects power during sustained over-voltage events to protect equipment.
• Wiring Fault Protection – Front-panel LED indicator alerts users to potentially hazardous external wiring issues.
• Eight AC Outlets – Includes seven rear-panel and one front-panel NEMA 5-20R outlets for flexible connectivity.
• Tour Class Chassis – Features a rugged, single-piece steel chassis built to withstand demanding environments.

SPECIFICATIONS

ELECTRICAL

• Load Capacity: 20 Amps
• Voltage: 120V, 60Hz
• Outlets: 8 NEMA 5-15R (7 rear, 1 front)

PROTECTION & FILTRATION

• Transient energy absorption: 1020 joules
• Maximum applied surge current: 3000 amps
• Maximum applied surge pulse: 6000 Volts
• Surge Let-Through (Line-Neutral): Maximum 10.0 Volts
• Surge Let-Through (Ground): Maximum 0.5 Volts
• Noise Filtration Type: Hybrid Filter (Normal and Common Mode)
• Over-Voltage Shutdown: Included

PHYSICAL

• Chassis: Tour Class, cold-rolled steel
• Form Factor: 1U Rack Mount
• Power Cord: 7 ft, 12/3 SJT NEMA 5-15P
• Weight: 8 lbs
