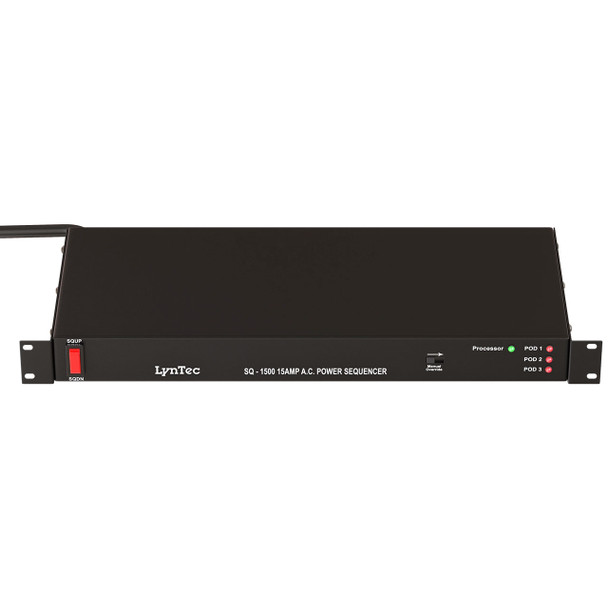

LynTec SQ-1500 Power Sequencer

The LynTec SQ-1500 delivers straightforward, dependable power sequencing for single-rack AV systems. It provides a 15A capacity distributed across six outlets, grouped into three sequenced steps to prevent harmful inrush current during startup. An additional seventh outlet remains unswitched for devices that require constant power. The simple design includes integrated surge protection and line noise filtration to protect connected equipment.

Designed for ease of use, the SQ-1500 can be activated locally via its front-panel switch or remotely using a simple latching contact closure. This makes it an ideal solution for installations in conference rooms, classrooms, and project studios where reliable, automated power-up is needed without the complexity of a networked control system. Front-panel LEDs provide clear, at-a-glance status of the sequencing process.

FEATURES

• 15 Amp Capacity – Provides ample power for typical single-rack audio and video systems.
• Three Sequence Events – Six switched outlets are grouped into three pairs, each with a timed delay on startup.
• One Unswitched Outlet – An always-on outlet is available for devices that require continuous power.
• Contact Closure Control – A simple remote connection allows for activation from a switch or third-party controller.
• Surge and Spike Protection – Protects sensitive electronics from damaging power surges and voltage spikes.
• AC Line Noise Filtration – Reduces interference from the power line for cleaner audio and video performance.
• Front Panel Status LEDs – Provides clear visual feedback on processor operation and relay status for easy monitoring.

SPECIFICATIONS

ELECTRICAL

• Load Capacity: 15 Amps
• Voltage: 120V, 60Hz
• Outlets: 7 NEMA 5-15R (6 sequenced, 1 unswitched)
• Sequence Steps: 3 (2 outlets per step)
• Signal Connections: 5 position terminal for 14 to 24 AWG connection V

PROTECTION & FILTRATION

• Surge, Spike, AC Line Noise Filtration

CONTROL

• Local Control: Front panel switch
• Remote Control: Latching contact closure input
• Indicators: LEDs for processor and relay status

PHYSICAL

• Chassis: Steel
• Form Factor: 1U Rack Mount
• Power Cord: 7 ft, NEMA 5-15P
• Weight: 8 lbs
