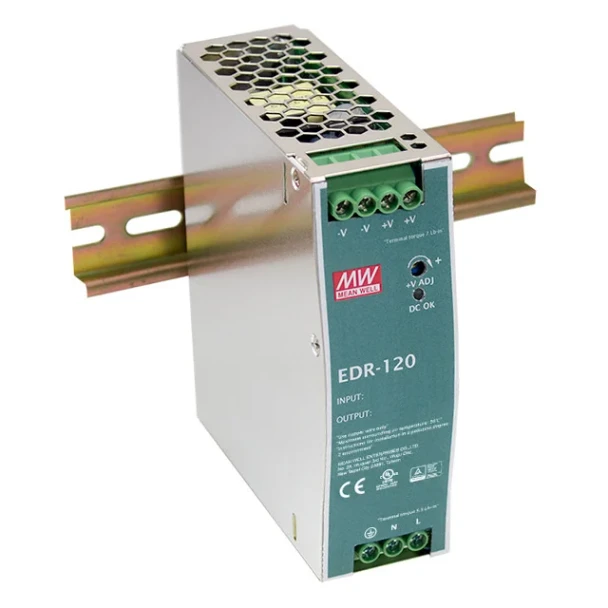

Mean Well EDR-120-48 Single Output DIN Rail Power Supply 120W 24V 2.5A

Mean Well EDR-120-48 Single Output Industrial DIN Rail Power Supply 120W 24V 2.5A. EDR-120 is an economical slim 120W DIN rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails.

FEATURES

• Universal AC input / full range
• Short circuit / Overload / Over voltage protection
• Cooling by free air convection
• DIN Rail TS-35/7.5 or 15 mountable
• UL 508 approved (Industrial control equipment)
• 100% full load burn-in test
• 2 year warranty

Click here for the Mean Well EDR-120 Specifications

SPECIFICATIONS

OUTPUT

• DC Voltage: 48V
• Voltage Adjustable Range: 48 ∼ 55V
• Rated Current: 2.5A
• Current Range: 0 ∼ 2.5A

INPUT

• Voltage Range:
  • 90 ∼ 264VAC
  • 127 ∼ 370VDC (DC input operation possible by connecting AC/L (+), AC/N(-)
• Frequency Range: 47 ∼ 63Hz
• Typical Efficiency: 88.5%
• Typical AC Current: 2.25A/115VAC, 1.3A/230VAC
• Typical Inrush Current: Cold start 20A/115VAC, 35A230/VAC
• Minimum Load Required: No

PROTECTION

• Over Load: 105 ∼ 130% rated output power
  • Protection Type: Constant current limiting, recovers automatically after fault condition is removed
• Over Voltage: 29 ∼ 33V
  • Protection Type: Shut down o/p voltage, re-power on to recover
• Over temperature Protection Type: Shut down o/p voltage, re-power on to recover

ENVIROMENT

• Operating Temperature: -20°C ~ 60°C (with Derating)
• Operating Humidity: 20 ~ 95%

PHYSICAL

• Dimension: 1.57 x 4.93 x 4.47 in. (40 x 125.2 x 113.5 mm)
• Weight: 1.32 lbs.

APPROVALS

• Approval Agency: CB, CE, cULus, RCM, TUV
