Minuit Une

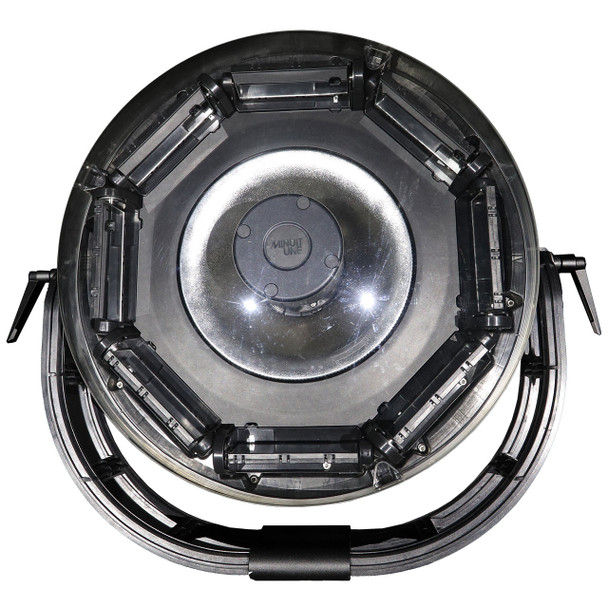

Minuit Une IVL Photon
- MPN:
- IVL-PHOTON
- Availability:
- This item is shipped directly from the vendor and is subject to their availability.
Frequently bought together:
Description
The Minuit Une IVL Photon makes the ordinary, extraordinary. The IVL Photon brings to the industry immersive beam shapes in mid-sized venues with a few units only. Endless looks from one single source. This technology-packed luminaire gives smaller productions the magnitude of big arena experiences. With its innovative moving core combined with the renowned 8 tilts system (2 sides by tilt, mirror and frost).

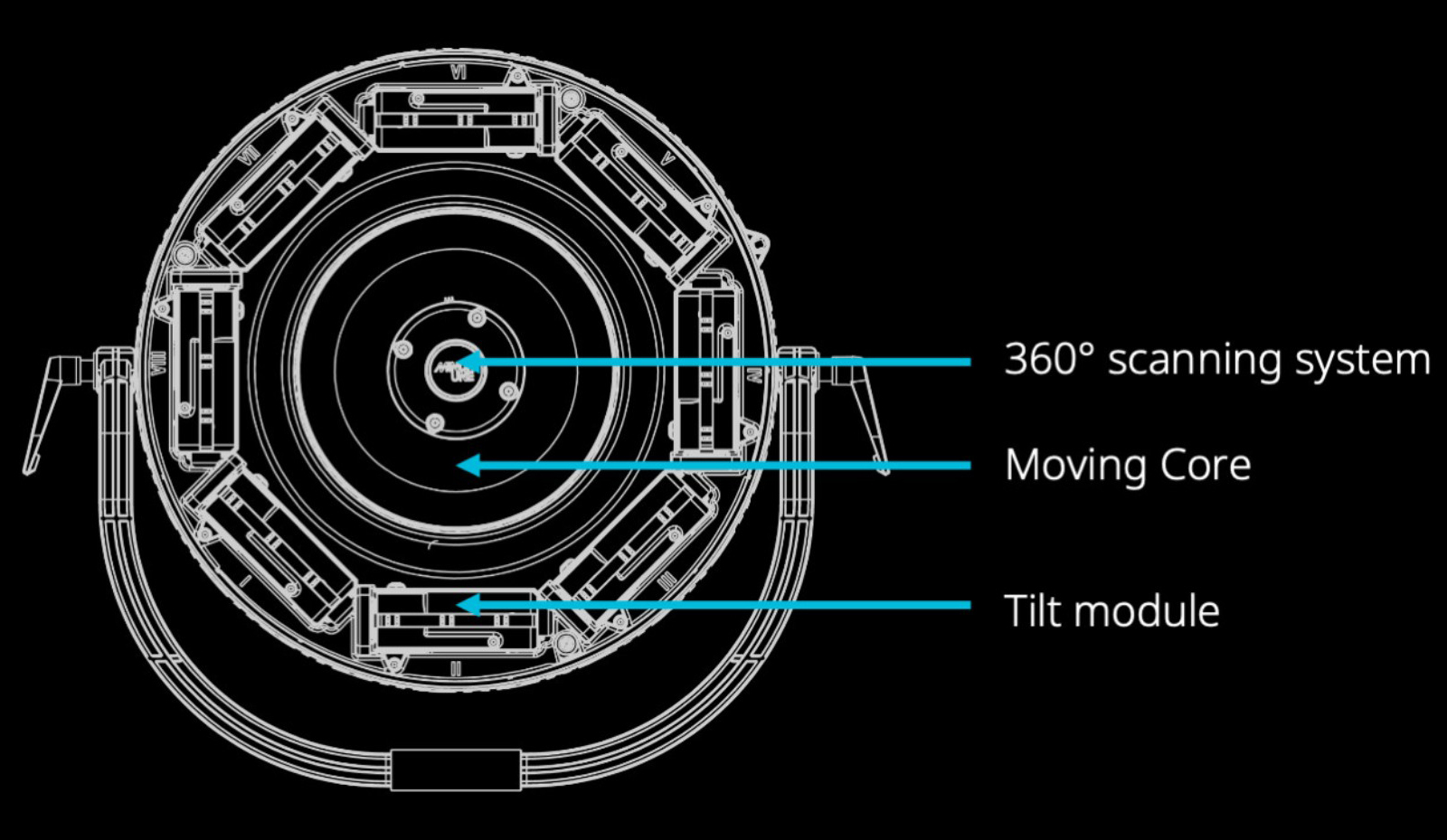

HOW IT WORKS – 3 OUTPUTS
- The failed-safe 360° scanning system, ensuring a constant very high frequency of rotation (>330Hz), produced a 360° light plan from the center to the 8 tilts.
- The 8 surrounding tilts split the light into 8 independent light plans adjustable at 180° with 2 sides by tilt: mirror side and frost side. Thanks to advanced motorization, the tilts are extremely reactive, while extremely smooth at very low speed.
- The moving core is the circular frosted reflector, located in the center of the product, that goes in and out, just like a zoom. A breakthrough innovation specially developed by Minuit Une for the IVL Photon.
FEATURES
- Lightweight (35 lbs/16 kg), compact (48cm), low power consumption (200W).
- An adjustable handle for a quick set-up in any position.
- An intuitive control, accessible to any lighting operator without training
- 60 DMX channels offering control over 9 gobos, the dimmer & RGB for each of the 8 tilts, a zoom to activate the moving core and an electronic shutter.
- A modular conception for low maintenance, fast repairs, and an extensive lifespan.
- An excellent RGB colorimetry
- Classified as Class 3R, IVL Photon is a laser-based lighting as safe as LED*
- (*It can be used in unsupervised areas according to the international standard (IEC 60825-3), without permit or specific training, and also variance-free in the USA.)
Minuit Une IVL Photon Brochure
Minuit Une IVL Photon User Manual
SPECIFICATIONS
PHYSICAL
- Dimensions of the circular housing: 18.94 x 18.94 x 12.87 in. (481 x 481 x 327 mm)
- Total dimensions (adjustable lyre included): 25.55 x 21.89 x 12.87 in. (649 x 556 x 327 mm)
- Weight: 35 lbs (16 kg)
HOUSING / CONSTRUCTION
- Modular conception: Subdivided into modules, which can be independently and quickly replaced.
- Protection rating: IP20
- Menu display: LCD color screen
- Low cleaning care: Optical parts isolated from the haze
LIGHT SOURCE
- Class 3R laser product: Extended source
- Wavelength: 448nm, 518nm, 638m
- Colors: RGB spectrum
- Beam diameter (1/e) at scanning vertex: >14 mm
- Beam divergence: >1,5 mrad
- Scan rate: 330HZ
- Distance from scanning vertex to closest point of human access (NPHA): 0.8 ft (240 mm)
- Maximum output: 23,2 μJ
- Typical average power at 1m: <1mW
- **LASER LIGHT - AVOID DIRECT EYE EXPOSURE
- CLASS 3R LASER PRODUCT 450nm, 638nm, 520nm 330Hz, <23,2μJ EN/IEC 60825-1 ed. 3 2014
CENTRAL SCANNING SYSTEM
- Scanning motor: Extensive lifetime brushless motor
- Scanning angle: 360°
- Mirror: R>98%
- Safeguard: Certified failed-safe
MIRROR OUTPUT
- Mirror side of the tilt: 11.5 x 5 cm PMMA mirror
- 8 independent mirrors: Producing independent 8 light planes
- Aperture by mirror: 42° linear aperture by tilt
- Operating angle: 180°
- Motorization: 8 steps to steps motors - 16 bits non-linear resolution
- Movement: Very smooth at low speed and extremely reactive
- Maximum speed: From mirror to frost side in 0,25sec
FROST OUTPUT
- Frost side of the tilt: 11.5 x 5 cm frost filter
- 8 independent frost filter: Producing 8 independent frosted outputs
- Aperture by mirror: Very wide
- Operating angle: 180°
- Motorization: 8 steps to steps motors - 16 bits non-linear resolution
- Movement: Very smooth at low speed and extremely reactive
- Maximum speed: From mirror to frost side in 0,25sec
- Output: 4 000 lux
MOVING CORE OUTPUT
- Central circular frosted reflector: 5cm high, 24cm external diameter, 10cm internal diameter
- Length of vertical movement: 6cm, 16 bits resolution
- Speed: Up to 6cm/sec in standard mode / up to 15cm/sec in fast mode
- Output: 20 000 lux
DMX
- Number of channels: 60
- 2 options: Standard or fast mode
- Update: By micro-SD card
- Electronical gobos: 9 e-gobos
- RGB control: Independent RGB control per tilt (x8)
- Dimmer control: Independent dimmer control per tilt (x8)
- Zoom parameter: Control of the moving core position
- Strobe: Control over the frequency of the pulse and the duration of the pulse
BEAM CONTROL (e-gobos)
- Number of beams: 1 to 256
- Control: Intuitive gobo like system
- Gobo type: Number of beams
- Gobo size: Width of the beam
- Gobo indexation: Position of the beam
- Gobo rotation: Speed and direction of the beam
POWER SUPPLY
- Power supply unit: 100 to 240 Volts – 50/60Hz
- Power: 200 Watt maximum
COOLING SYSTEM / THERMAL
- Cooling: Thermoelectric cooling
- Safety: Protection against excessive temperatures
- Nominal operating temperature of the laser source: 30°C
OPERATING PARAMETERS
- Maximum ambient temperature: 40°C (104°F)
- Minimum ambient temperature: 0°C (32°F)
CONNECTIONS
- AC power input/output: Neutrik PowerCon True1
- DMX data in/out: 5-pin locking XLR
- (Directive No : 2014/30/UE)
- EN 55103_1:2009/A1:2013
- EN 62311 : 2008
- EN 55103-2 : 2009
STANADARDS
- Safety:
- CB IEC60825-1:2014
- 21CFR 1040
- ANSI Z136.1 “Standard for Safe Use of Lasers”
- CB IEC62368
- EMC:
- EN55032
- EN55035
- EN61000-3-2
- EN61000-3-3
- FCC Part15sDoc
- ICES-003
- AS/NZS CISPR32, 35
