Obsidian Control Systems

Obsidian Netron EP2 - 2 x 5 Pin XLR Port POE ArtNET Node

Write a Review
MPN:
NRE034
Availability:
Usually ships within 2 business days when in stock.

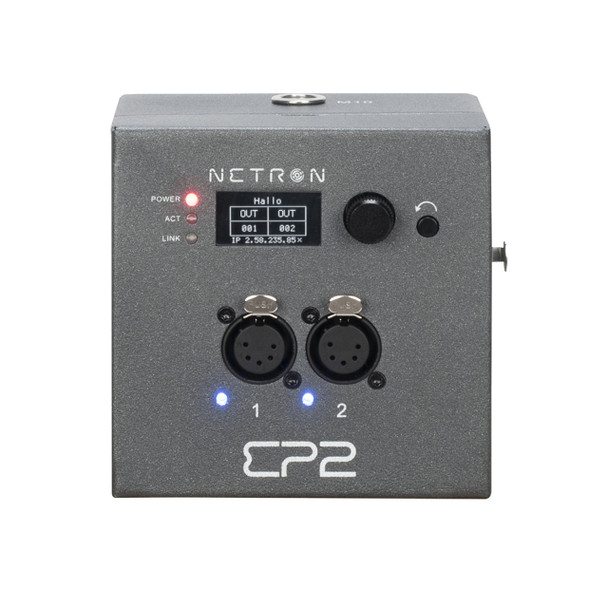

  • Obsidian Netron EP2 front
  • Obsidian Netron EP2 left
  • Obsidian Netron EP2 right
  • Obsidian Netron EP2 rear
  • Obsidian Netron EP2 rear 2
  • Obsidian Netron EP2 ring
  • Obsidian Netron EP2 display front open
  • Obsidian Netron EP2 display right open
  • Obsidian Netron EP2 display rear
  • Obsidian Netron EP2 display with ring
$390.00

Description

The Obsidian Control Systems Netron EP2 is a compact Ethernet to DMX gateway with two RDM compatible ports designed for wall mount, truss mount and standalone installations. It is configurable via its internal web remote and powered over Ethernet or via the convenient USB-C connection.

FEATURES

  • RDM, ArtNet and sACN support
  • Factory and user presets for plug and play setups
  • POE or USB-C powered
  • 1.3" OLED Display with rotary knob
  • Remote configuration via internal webpage
  • Powder-coated compact metal housing
  • Connect to ONYX PC for a full four Universe Solution
  • In-wall, On-Wall, Truss and Standalone mounting
  • Unlocks ONYX NOVA 4-Universe License

WHAT'S INCLUDED

  • Universal 5V/2A USB Power Adapter (UK, US, Europe, & AUS connectors), 100-240V
  • 1.5m Obsidian USB-C cable
  • Wallmount Enclosure
  • In-wall mounting ring

SPECIFICATIONS

MOUNTING

  • Standalone (backbox included)
  • Truss-mount (M10 + M12 mounting hole)
  • In or On-wall 2-Gang (US) or 50 mm round (EU)

CONNECTIONS

  • Front:
    • (2) 5pin DMX/RDM optically isolated ports, Ports are bidirectional for DMX In and Output
  • Side:
    • (1) Locking RJ45 Ethernet network connections (POE)
    • USB-C power option (5V, 2A)

SIZE / WEIGHT

  • Length: 4.6 in. (117.6 mm)
  • Width: 4.5 in. (114.0 mm)
  • Height: 3.5 in. (89.1 mm)
  • Weight: 1.76 lbs. (0.8 kg)

ELECTRICAL

  • USB-C 5V
  • POE 802.3af, 2.8W

APPROVALS

  • CE / UKCA / IP20
