Platinum Tools

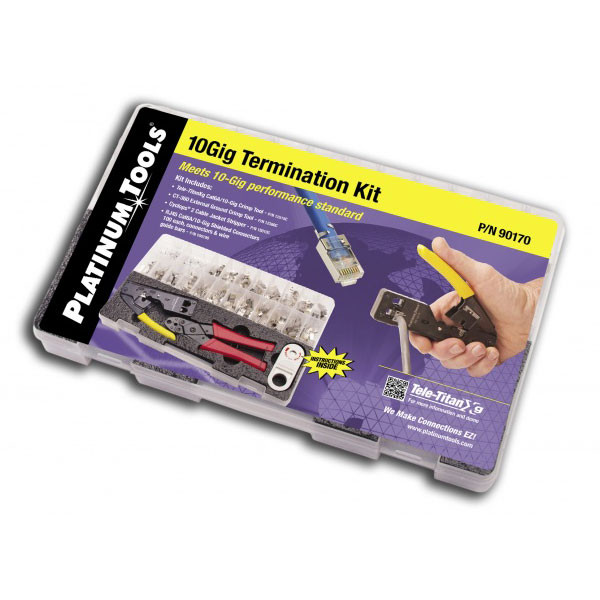

Platinum Tools 10Gig Termination Kit
- MPN:
- 90170
- Availability:
- Usually ships within 2 business days when in stock.
Frequently bought together:
Description
This system is the right solution for terminating larger cables like Cat6E, Cat6A, Cat7 and over-sized Cat5e/6 industrial Ethernet cables for data, audio and video applications.
WHAT'S INCLUDED
- Tele-TitanXg® Cat6A/10Gig Crimp Tool (MPN 12515)
- Specifically made for terminating #106190 Cat6A/10Gig connectors
- Straight action vertical crimp force
- Minimal hand force for a perfect crimp
- RJ45 Cat6A/10Gig Shielded Connectors 100pcs (MPN 106190)
- Max cable OD: 0.335 in. (8.5 mm)
- Max conductor OD: 0.053 in. (1.35 mm)
- UL and RoHS compliant
- Cyclops®2 Cable Jacket Stripper
- Self-adjusts to automatically score PVC, Plenum and others without damaging braids, foil or conductors
- Ready-to-use out of the kit without having to make adjustments
- Works with shielded/unshielded twisted pair single & multi-core and fiber optic cables
- Accepts cable ODs 0.10 to 0.43 in. (2.5 - 11 mm)
- CT-360 External Ground Crimp Tool
- 360° crimp on the external ground tab of shielded RJ45 connectors
- Perform concentric termination with full control to prevent over or under crimping - Dual cavity covers wide range of cable ODs ranging from 0.245 to 0.335 in. (6.2 - 8.5 mm)
- Spring-loaded, non-ratcheted design
- All steel frame, rust-resistant black oxide finish, molded plastic handles
