ProPlex

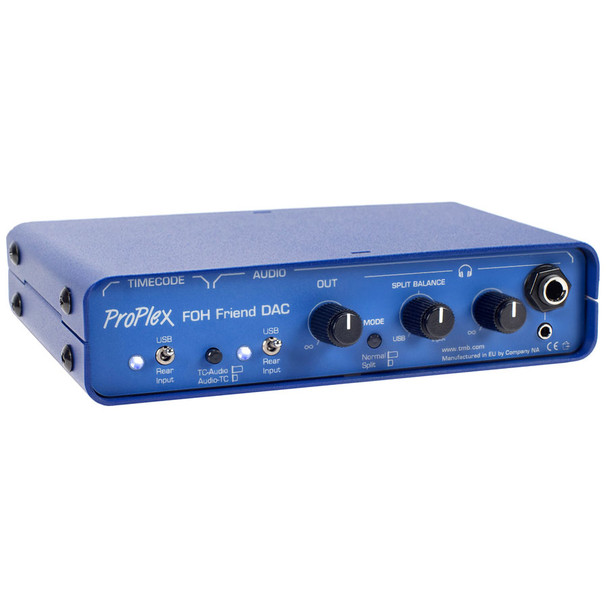

ProPlex FOH Friend DAC Mini Enclosure
- MPN:
- PPFOHFDAC
- Availability:
- This item is shipped directly from the vendor and is subject to their availability.
- Drop Shipment:
- Not available for in-store pick up
Frequently bought together:
Description
The ProPlex FoH Timecode/Audio Switching Tool is a unique tool for every show programmer - media, lighting and audio.
FEATURES
- Work with your local timecode and audio track files until the stage calls!
- Instantly switch between two timecode and audio sources
- All the outputs and controls you need for timecode and audio tracks
- Make use of every minute of your valuable programming time
- A durable, compact unit that goes with you anywhere
SPECIFICATIONS
- Model: FoH™ Friend FoH™ Friend DAC
- Part Number: PPFOHF PPFOHFDAC
- DC Power: 5 VDC only for headphone amplifier
- Power Consumption: 0.1 A
- Cooling: Passive
- Power Connectors: USB-C
- Timecode Input Connectors: USB-C
- Audio Input Connectors: USB-C
- Timecode Output Connectors: 3x Neutrik XLR Male with 600 Ohm transformers
- Audio Output Connectors: 1x Neutrik XLR Male, 1x 1/4" TRS Jack
- Headphone Output Connectors: 1x 1/4" TRS Headphone Jack, 1x 3.5 mm TRS Jack
- Operating Temperature: -4 to 104 °F [-20 to +40 °C]
- Unit Dimensions (HxWxD): 1.72 x 7.22 x 5.07 in. (43.7 x 183.5 x 128.7 mm)
- Shipping Dimensions (HxWxD): 4 x 8.5 x 5.5 in. (101.6 x 215.9 x 139.7 mm)
- Unit Weight: 1.2 lb (0.54 kg)
- Shipping Weight: 1.4 lb (0.64 kg)
