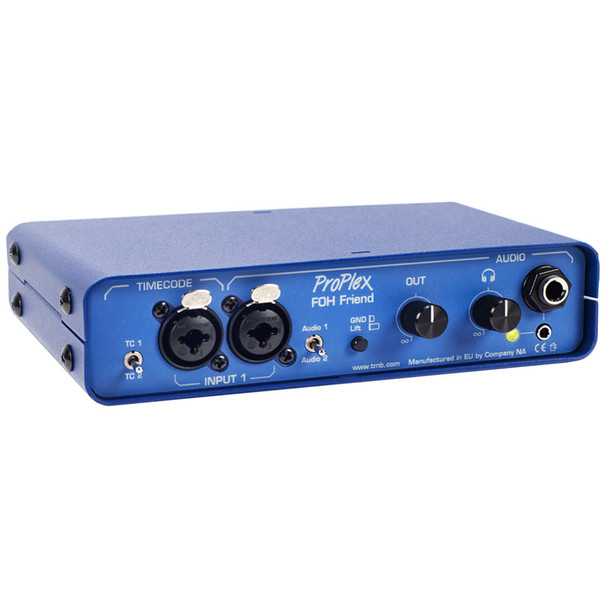

ProPlex FOH Friend Mini Enclosure

The ProPlex FoH Timecode/Audio Switching Tool is a unique tool for every show programmer - media, lighting and audio.

FEATURES

• Work with your local timecode and audio track files until the stage calls!
• Instantly switch between two timecode and audio sources
• All the outputs and controls you need for timecode and audio tracks
• Make use of every minute of your valuable programming time
• A durable, compact unit that goes with you anywhere

SPECIFICATIONS

• Model: FoH™ Friend FoH™ Friend DAC
• Part Number: PPFOHF PPFOHFDAC
• DC Power: 5 VDC only for headphone amplifier
• Power Consumption: 0.1 A
• Cooling: Passive
• Power Connectors: USB-C
• Timecode Input Connectors: 2x Neutrik XLR Female with combination 1/4" TRS USB-C
• Audio Input Connectors: 2x Neutrik XLR Female with combination 1/4" TRS USB-C
• Timecode Output Connectors: 3x Neutrik XLR Male with 600 Ohm transformers
• Audio Output Connectors: 1x Neutrik XLR Male, 1x 1/4" TRS Jack
• Headphone Output Connectors: 1x 1/4" TRS Headphone Jack, 1x 3.5 mm TRS Jack
• Operating Temperature: -4 to 104 °F [-20 to +40 °C]
• Unit Dimensions (HxWxD): 1.72 x 7.22 x 5.07 in. (43.7 x 183.5 x 128.7 mm)
• Shipping Dimensions (HxWxD): 4 x 8.5 x 5.5 in. (101.6 x 215.9 x 139.7 mm)
• Unit Weight: 1.2 lb (0.54 kg)
• Shipping Weight: 1.4 lb (0.64 kg)
