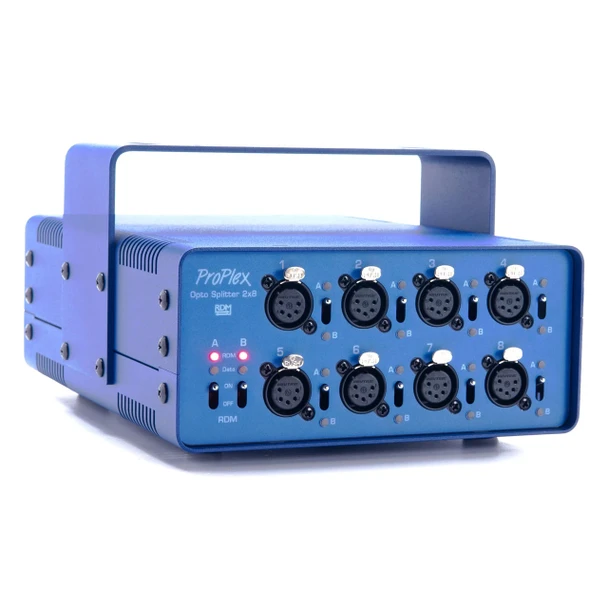

ProPlex Opto-Splitter 2x8 RDM Portable Mount

DMX512 optically isolated splitter/repeater. Two DMX512 inputs, each with DMX Thru, individually switchable to up to 8 isolated outputs.

FEATURES

• Rugged "BSH" Portable Mount enclosure with removable truss yoke
• Two Inputs + Thru, individually switchable to up to 8 isolated Outputs
• RDM defeat switch on each input
• Single and Dual Rack Mount Kits available
• Neutrik™ connectors: Locking PowerCon mains and XLR
• Shock-mounted circuitry. Designed for extreme conditions and temperature

ProPlex OptoSplitter 2x8 Portable Mount LTR Datasheet

SPECIFICATIONS

• Part Number: PPDDS285RP
• DMX Input: 2x XLR5 Male (back panel)
• DMX Thru: 2x XLR5 Female (back panel)
• DMX Output: 8 Isolated XLR5 Female
• DMX Signal: DMX-512A
• RDM: Yes, individually defeatable for each input
• Signal Delay: REGENERATION mode: 2μsec
• In/Out/Out Isolation: Optical to 1000V
• Power: 100-240 VAC, 50-60 Hz (consumption 10W)
• Mains Connector: Neutrik PowerCON NCA3MPA
• Fuse: 1A, 250V
• Cooling: Convection
• Operating Temperature: -4 to +104 °F (-20 to +40 °C)
• Operating Humidity: 10 - 85%
• Unit Dimensions
  • With Yoke (WxHxD): 4.7 x 8 x 10.7 in. (120 x 202 x 272 mm)
  • Without Yoke (WxHxD): 3.4 x 8 x 10.7 in. (87 x 202 x 272 mm)
• Weight: 8.0 lbs (3.6 kg)
