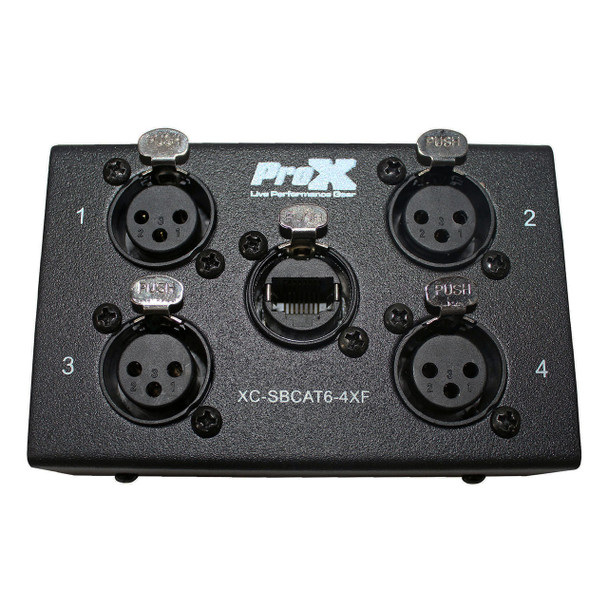

ProX 4-Channel CAT6 Audio Snake Box to (4) XLR Female

The ProX XC-SBCAT6-4XF Audio Snake Box is half of a pair of metal boxes that are used to send up to four audio/DMX signals over a single run of CAT-5, CAT-5E or CAT-6 cables. They are low-cost & compact. Designed to the highest professional standards the XC-SBCAT6-4XM Snake Box has a wide, flat frequency response.

Both an XC-SBCAT6-4XF and an XC-SBCAT6-4XM are required for the working pair.

You can mix and match Mic/Line, Line or AES/EBU configurations making the Snake Box a very versatile high-quality means of transporting analog or digital signals. This Snake Box has been factory tested over CAT-5 UTP & CAT-6 STP cables.

FEATURES

• Analog Audio or Digital DMX
• Gold Plated Contacts
• Mic / Line / AES audio all on the same cable
• Supports 48V Phantom power (needs STP Shielded CAT-x cable)
• No Ground Loops
• Add a second unit to increase the number of channels
• Rugged 'road-ready' construction
• RoHS Compliant
• Bandwidth: 20 Hz to 20 kHz
• Crosstalk: Better than -95 dB at 20 KHz
• Connectors:
  • PBE-202S Sending end - 4x Female 3-Pin XLR to Ethercon RJ45 jack

SPECIFICATIONS

• Dimensions: 4.21 x 2.75 x 1.77 in. (107 x 70 x 45 mm)
• Weight: 0.88 lbs (0.4 Kg)
