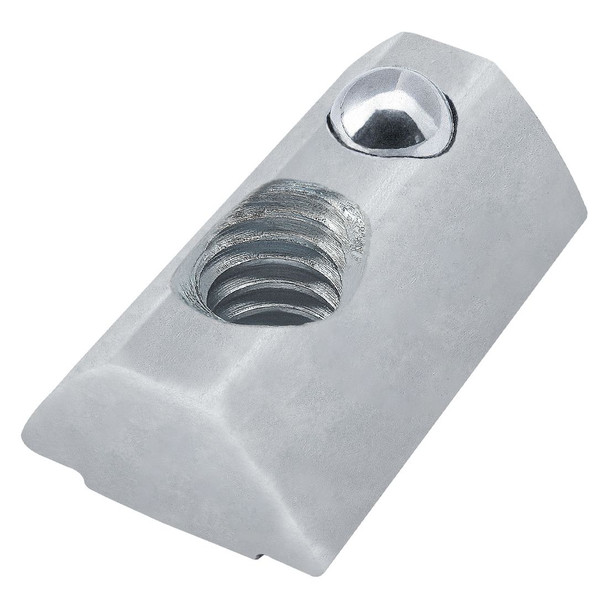

80/20 #13037 1/4-20 Self-Aligning Roll-in T-Nut with Ball Spring (4 pcs)

The 80/20 #13037 1/4-20 Self-Aligning Roll-in T-Nut with Ball Spring

The self-aligning roll-in T-nut with ball spring is a fastening option that loads either from the profile ends or side, which is helpful for applications where the ends are inaccessible. The projection on the T-nut aligns it in the T-slot while the ball spring holds the fastener in place, even when the profile is in a vertical position.

DETAILS

• Quantity: 4 pieces
• Series: 15 Series, 40 Series
• Material: Steel
• Grade: 1045
• Finish: Zinc
• Color: Bright
• Dimensions:
  • A: 6.70 mm
  • B: 22.00 mm
  • C: 13.50 mm
  • D (Thread): 1/4-20
  • E: 8.90 mm
  • F: 7.20 mm
  • G: 7.80 mm
  • H: 0.80 mm
• Weight: 0.022 lbs. each
