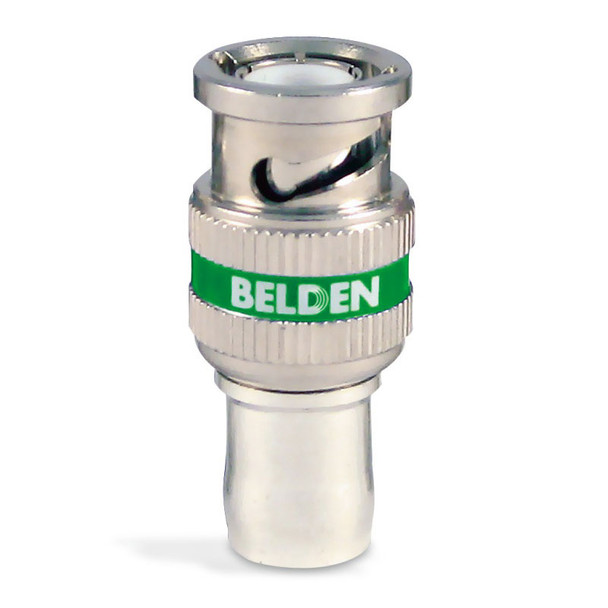

Belden 4694RBUHD1 12GHz UHD BNC Compression Connector

The Belden 4694RBUHD1 is a 1 piece RG-6, 12 GHz, 75 Ohm BNC compression connector for Belden 1694A RG6 cable. 1-piece connectors offers faster, more consistent field installation with the same excellent signal quality and performance as traditional 3-piece connectors. Specifically designed for use with Brilliance cable, creating the perfect connector-to-cable combination. 360 Degree compression rings deliver superior pull strength exceeding 100 pounds.

FEATURES

• Quick Deployment: A 360-degree, floating-pin basket at the back of the connector makes insertion of the cable center conductor accurate and easy
• Excellent Holding Strength: Internal 360-degree compression rings eliminate ingress and egress from the back of the connector
• Outstanding Return Loss Performance
• Designed to fit with Belden Brilliance cable creating the perfect cable-to-connector combination
• Extended BNC Head Knurl nut design to ease identification and installation

Suitable Applications: HD-SDI, Video, Digital Video, SMPTE 2081-1 SMPTE

SPECIFICATIONS

• Packaging: 1 single connector

MATERIALS

• Nut: Brass, Nickel Plated
• Body: Brass, Nickel Plated
• Contact: Brass, Gold Plated
• Insulator: PTFE

ELECTRICAL

• Nominal Characteristic Impedance: 75 Ohm
• Return Loss
  • Frequency [MHz]: 5-1485. Minimum Return (RL): 15 dB
  • Frequency [MHz]: 1485-3000. Minimum Return (RL): 10 dB
  • Frequency [MHz]: 3000-6000. Minimum Return (RL): 7 dB
  • Frequency [MHz]: 6000-12000. Minimum Return (RL): 4 dB
  • Note: SMPTE 2081-1 Return Loss or better

MECHANICAL

• Footprint/Type: Coax
• Connector Interface Type: BNC
• Gender: Male - plug
• Connector Series Name: UHD
• Color Band: Green
• Locking: No
• Tool Compatibility: CPLCRBC-BR (compression), PSA59/6 (strip)
• Termination Type: Compression
• Cable Center Conductor Diameter Limits: 0.3740 - 0.0401 in.
• Cable Dielectric Diameter Limits: 0.1771 - 0.1850 in.
• Cable Outer Jacket Diameter Limits: 0.2657 - 0.2854 in.

STANDARD

• RG Type: 6

APPLICABLE ENVIROMENT

• Suitability - Indoor: Yes
• Suitability - Outdoor: No
• Plenum: No
