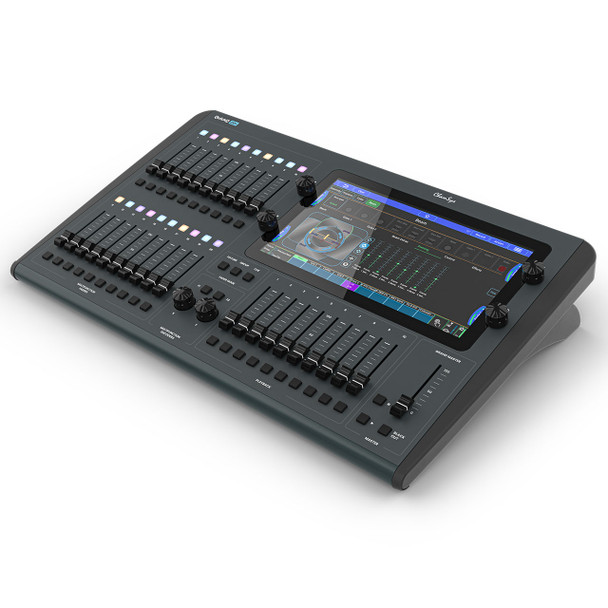

ChamSys QuickQ 20+ Console - Coming Soon!

HARDWARE

• Universes supported: 2
• Direct DMX Outputs 5-Pin XLR: 2
• Master Playback Faders: 10
• Multi-Function Fixture Faders: 20
• Bump Buttons: Yes
• Attribute Encoders: 4
• Dedicated Hue/Saturation Encoders: Yes
• Inbuilt 9.7” Multi-touch Display: Yes
• External Monitor: 1920 x 1080 HDMI
• Inbuilt Wi-Fi: Yes
• Network Port: 1
• USB Ports: 2
• Audio Input: 1
• Audio Output: 1*
• MIDI Ports in/out: Yes*

SOFTWARE

• Max Number of DMX Channels: 1024
• Max Number of Fixtures Supported: 1024
• Max Number of Cue Stacks: 10
• Max Number of Chases: 10
• Midi & Midi Timecode Supported: Yes
• OSC Supported: Yes
• RDM Autopatch for fast show patching
• Fixture library of over 30,000 fixture files
• Built in FX generator
• Colour picker and Gel inbuilt Gel library
• Offline designer software available for Windows and Mac

INCLUDED ACCESSORIES

• USB Desk light: 1
• Dust cover: 1
• Tablet stand: 1
• Wi-Fi Antenna: 1
• 12V power supply: 1
• IEC power cable: 1

CONSOLE WEIGHTS AND DIMENSIONS

• Width: 22.2 in. (565 mm)
• Depth: 13.8 in. (350 mm)
• Height: 4.2 in. (106 mm)
• Weight: 11.46 lb (5.2 kg)

BOXED WEIGHTS AND DIMENSIONS

• Width: 28.3 in. (720 mm)
• Depth: 16.5 in. (420 mm)
• Height: 9 in. (230 mm)
• Weight: 17.63 lb (8 kg)

FLIGHT CASED WEIGHTS AND DIMENSIONS (Flight case sold separately)

• Width: 25.6 in. (650 mm)
• Depth: 19.3 in. (490 mm)
• Height: 8.3 in. (210 mm)
• Weight (console in flightcase): 35.27 lb (16 kg)
