Chamsys
ChamSys QuickQ Rack+ Console - Coming Soon!
- MPN:
- CHAMQUICKQRACK+
- Availability:
- This item is shipped directly from the vendor and is subject to their availability.
- Drop Shipment:
- Not available for in-store pick up
Frequently bought together:
Description

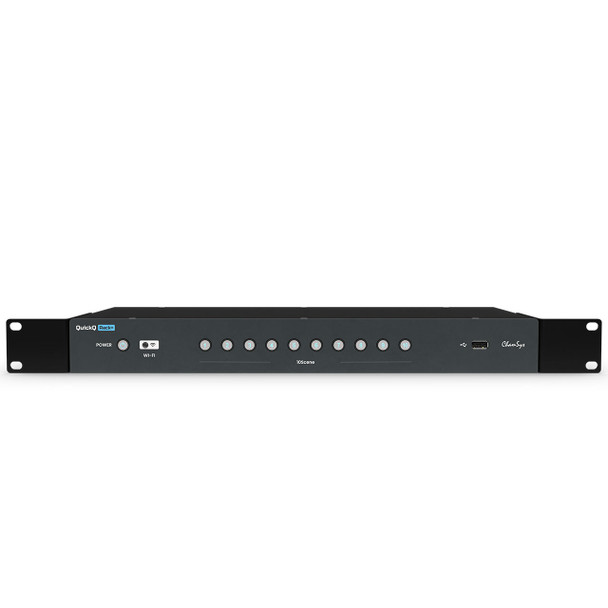

The ChamSys QuickQ Rack+
FEATURES
- Ideal for installations and architectural settings
- Featuring four Universes of DMX output
- Two RDM enabled 5-pin DMX connectors
- Inbuilt Wi-Fi for programming and remote control
- Ten buttons for activation of Cues and Playbacks
- Four 10Scene ports for connection of up to forty 10Scene wall plate
- Features the same intuitive software as QuickQ Consoles
- Simple Hot-Takeover mode allowing an external console to take control
WHAT'S INCLUDED
- Wi-Fi Antenna
- (2) Rackmount Ears
- (4) 10Scene Connectors
- Neutrik powerCON TRUE1 Power Cable
SPECIFICATIONS
HARDWARE
- Universes supported: 4
- Direct DMX Outputs 5-Pin XLR: 2
- 10Scene buttons: 10
- External Monitor: 1920 x 1080 HDMI
- Inbuilt Wi-Fi: Yes
- Network Port: 1
- USB Ports: 2
- Audio Input: 1
- Audio Output: 1
- MIDI Ports in/out: Yes
- TrueCon Power Input: 90-250v AC
SOFTWARE
- Max Number of DMX Channels: 2048
- Max Number of Fixtures Supported: 2048
- Max Number of Scenes: 10
- Midi & Midi Timecode Supported: Yes
- OSC Supported: Yes
- RDM Autopatch for fast show patching
- Fixture library of over 30,000 fixture files
- Built in FX generator
- Colour picker and Gel inbuilt Gel library
- Offline designer software available for Windows and Mac
- Supported fixtures: All - LEDs, Dimmers & Moving Lights
RACK CONSOLE WEIGHTS AND DIMENSIONS
- Width (without ears): 15.8 in. (403 mm)
- Depth: 7.7 in. (195 mm)
- Height: 1.8 in. (45 mm)
- Weight: 6.8 lb (3.1 kg)
BOXED WEIGHTS AND DIMENSIONS
- Width: 18.9 in. (480 mm)
- Depth: 13.0 in. (330 mm)
- Height: 5.9 in. (150 mm)
- Weight: 8.81 lb (4 kg)
