Chauvet Professional

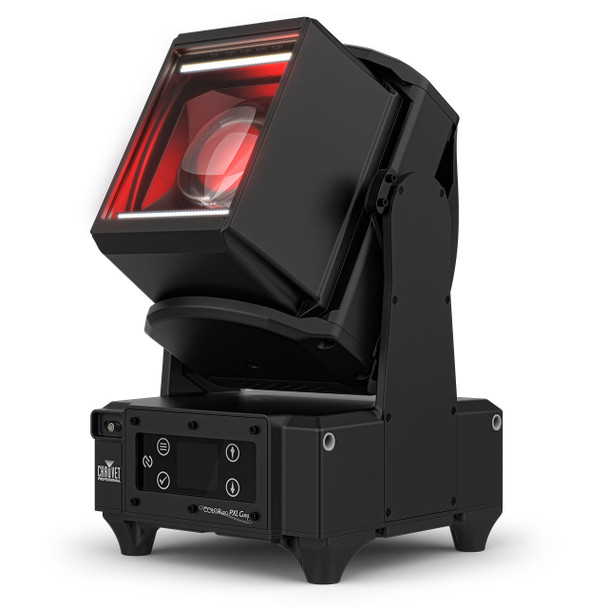

Chauvet Professional COLORado PXL Curve 1
- UPC:
- 781462230906
- MPN:
- COLORADOPXLCURVE1
- Availability:
- This item is shipped directly from the vendor and is subject to their availability.
- Drop Shipment:
- Not available for in-store pick up
Frequently bought together:
Description
The Chauvet Professional COLORado PXL Curve 1 features motorized pan, tilt and zoom in a compact IP65-rated RGBW LED beam and wash fixture that brings the added punch of dual linear cool and warm white LED strobe cells. Designed for seamless pixel mapping with multiple fixtures, alignment pins maintain pixel pitch while its color blending and rectangular head perfectly match other COLORado PXL models in the rig. Flexible DMX, sACN, and Art-Net control along with RDM and NFC support round out this versatile addition to the COLORado PXL family.
FEATURES
- All Weather Creative Power – An IP65-rated RGBW wash, beam, and dual strobe delivers versatile effects with pan and tilt functionality for any indoor or outdoor environment.
- Precise Articulation – Achieve quick and quiet positioning with 60° of pan and 190° of tilt, perfect for creating dynamic, articulating arrays and animated looks.
- Advanced Strobe Control – Command eight independent sections of the warm and cool white strobe cells to generate unique pixel-mapped chases and other dynamic visual effects.
- Compact And Lightweight Design – A compact and lightweight body allows for faster rigging and enables the creation of large, seamless arrays without excessive weight on your structure.
- Flexible Control Options – Integrate seamlessly into any professional lighting system using your choice of DMX, sACN, or Art-Net for maximum control protocol flexibility.
- Simplified Fixture Management – Use RDM for remote addressing and monitoring, or tap the fixture with your phone using NFC to configure settings without applying power.
- Weatherproof Connections – Maintain signal integrity in any weather with IP65-rated 5-pin DMX and TCP/IP connections for secure input and output linking.
- Fast And Secure Rigging – Mount fixtures quickly and securely in any orientation with the included slotted Omega bracket, designed for effortless truss installation.
WHAT'S INCLUDED
- COLORado PXL CURVE 1
- Power Cord Edison to PowerKon IP
- Omega bracket with mounting hardware
SPECIFICATIONS
OPTICAL
- Light Source(s):
- Light Source (Cell): 1 LEDs (quad-color RGBW) 120 W, (5 A), 50,000 hours life expectancy
- Light Source (Strobe/Blinder): 160 SMD-LEDs (80 CW, 80 WW), 50,000 hours life expectancy
- Color Temperature (at full): 22,089 K
- Beam Angle(s)
- Beam Angle (without strobe): 3.4 - 30.2°
- Beam Angle (with strobe): 3.4 - 32.1°
- Field Angle(s)
- Field Angle (without strobe): 4.4 - 38.7°
- Field Angle (with strobe): 4.3 - 66.3°
- Cutoff Angle(s)
- Cutoff Angle (without strobe): 4.7 - 40.8°
- Cutoff Angle (with strobe): 4.6 - 144.3°
- Zoom Range(s)
- Zoom Range (without strobe): 3.4 - 40.8°
- Zoom Range (with strobe): 3.4 -144.3°
- Lumens
- Lumens (without strobe): 1,558
- Lumens (with strobe): 4,630
- Illuminance
- Illuminance without strobe (3.2°): 17,242 lux @ 5 m
- Illuminance with strobe (3.2°): 17,786 lux @ 5 m
- Illuminance with strobe (39.8°): 328 lux @ 5 m
- Illuminance with strobe (145.1°): 407 lux @ 5 m
DYNAMIC EFFECTS
- Pan and Tilt: 60°/190°
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Zoom: Motorized/Manual
- Strobe Rate: 0 to 25 Hz
- Color Temperature Presets: Yes
- Move-in-Black: Yes
- Dim Modes: 2
- Dim Curves: 4
CONSTRUCTION / PHYSICAL
- Dimensions: 7.83 x 8.46 x 12.99 in. (199 x 215 x 330 mm)
- Weight: 15 lb (6.8 kg)
CONNECTIONS
- Power Input: Seetronic Powerkon
- Power Output: Seetronic Powerkon
- Data Connectors: 5-pin IP65 XLR, etherCON
- Cable Length (power): 5 ft (1.5 m)
CONTROL
- Control Protocol: Art-Net, sACN, DMX, RDM, NFC
- DMX Channels: 24 or 45
- Art-Net Channels: 24 or 45
- Modes/Personalities: 2 personalities (24, 45)
CERTIFICATIONS / QUALIFICATIONS
- CE, MET
- IP Rating: IP65, temporary outdoor/wet use
- Temperature (Ambient): 14 °F to 113 °F (-10 °C to 45 °C)
