Chauvet Professional
Chauvet Professional COLORado PXL Curve 5
- UPC:
- 781462231309
- MPN:
- COLORADOPXLCURVE5
- Availability:
- This item is shipped directly from the vendor and is subject to their availability.
- Drop Shipment:
- Not available for in-store pick up
Frequently bought together:
Description

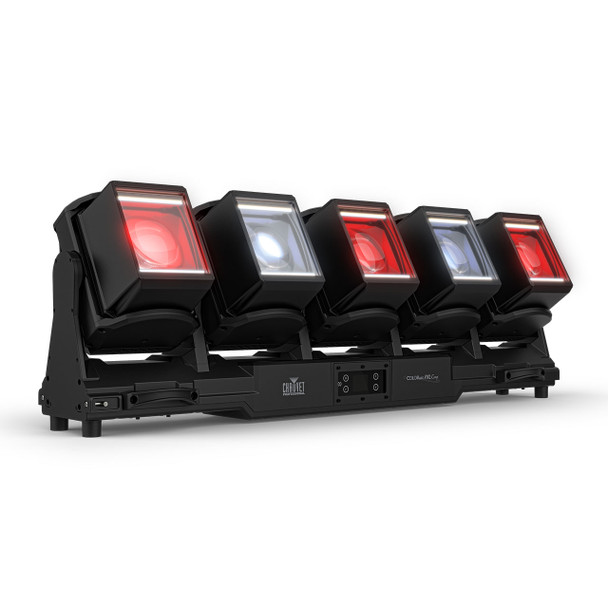

The Chauvet Professional COLORado PXL Curve 5 features motorized pan, tilt and zoom in an IP65-rated LED batten form factor with five RGBW beam/wash heads that bring the added punch of dual linear cool and warm white LED strobe cells. Designed for seamless pixel mapping with COLORado PXL Curve 1, its color blending and rectangular heads perfectly match other COLORado PXL models in the rig. Flexible DMX, sACN, and Art-Net control along with RDM and NFC support round out this versatile addition to the COLORado PXL family.
FEATURES
- Individual Pixel Control – Five independently controlled RGBW pixels empower you to create intricate pixel-mapped effects, animated graphics, and vibrant, multi-layered color washes.
- All Weather Reliability – A rugged, IP65-rated housing protects against water and dust, ensuring consistent, reliable performance for outdoor concerts, festivals, and permanent installations.
- Powerful Moving Wash – Delivers smooth, fast pan and tilt movement combined with a powerful wash output, perfect for covering large areas with rich, saturated color.
WHAT'S INCLUDED
- COLORado PXL CURVE 5
- Seetronic Powercon IP65 power cord
- (2) Omega Brackets
SPECIFICATIONS
OPTICAL
- Light Source: 5 LEDs (RGBW) 120 W, (4.5A) 50,000 hours life expectancy
- Color Temperature (range): 3200 to 7500 K
- Beam Angle
- Spot: 8.3°
- Flood: 30.4°
- 50% Zoom: 14.7°
- Field Angle
- Spot: 10.3°
- Flood: 115.8°
- 50% Zoom: 24.1°
- Cutoff Angle
- Spot: 10.7°
- Flood: 155.1°
- 50% Zoom: 132.2°
- Zoom
- Range: 8.3° to 155.1°
- Single Head Beam Angle (without strobe): 3.2 - 30.3°
- Single Head Beam Angle (with strobe): 3.2 - 32.3°
- Single Head Field Angle (without strobe): 3.7 - 38°
- Single Head Field Angle (with strobe): 3.7 - 88.7°
- Single Head Cutoff Angle (without strobe): 4 - 39.8°
- Single Head Cutoff Angle (with strobe): 4 - 145.1°
- Single Head Zoom Range (without strobe): 3.2 - 39.8°
- Single Head Zoom Range (with strobe): 3.2 - 145.1°
- Lumens: 42,172 lm
- Illuminance
- Spot: 18,062 lux @ 5 m
- Flood: 2,166 lux @ 5 m
- Selectable PWM: 600, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 15000 Hz
DYNAMIC EFFECTS
- Pan and Tilt: 60°/200°
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Zoom: Motorized/Manual
- Strobe Rate: 0 to 25 Hz
- Standalone Color Mixing: No
- Color Temperature Presets: Yes
- Dim Modes: 2
- Built-in Automated Programs: Yes
CONSTRUCTION / PHYSICAL
- Dimensions: 39.33 x 8.86 x 13.50 in. (999 x 225 x 343 mm)
- Weight: 71.4 lb (32.4 kg)
- Exterior Color: Black
- Housing Material: Aluminum diecast, High-Impact flame-retardant polymer, Steel
CONNECTIONS
- Power Input: Seetronic Powerkon IP65
- Power Output: Seetronic Powerkon IP65
- Data Connectors: 5-pin IP65 XLR, Seetronic etherCON IP65
- Cable Length (power): 5 ft (1.5 m)
CONTROL
- Control Protocol: Art-Net, sACN, DMX, RDM
- DMX Channels: 120, 155, 195, or 355
- Art-Net Channels: 120, 155, 195, or 355
- Modes/Personalities: 4 personalities (120, 155, 19, or 355)
CERTIFICATIONS / QUALIFICATIONS
- CE, MET, UKCA, FCC
- IP Rating: IP65, temporary outdoor/wet use
- Temperature (Ambient): 14 °F to 113 °F (-10 °C to 45 °C)
