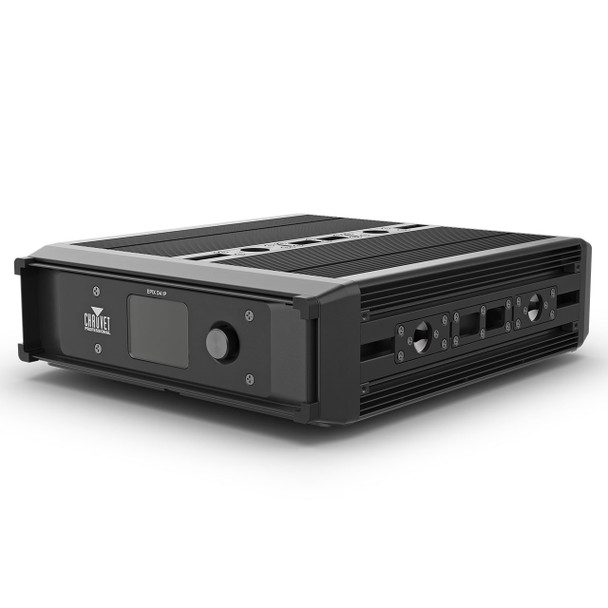

Chauvet Professional EPIX D4 IP

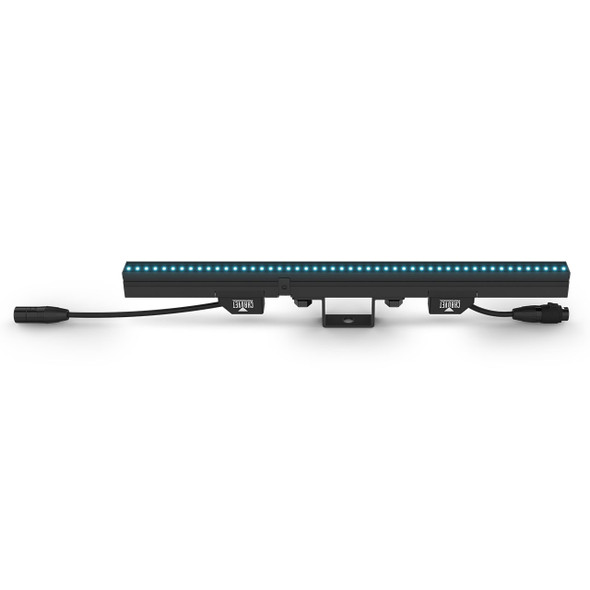

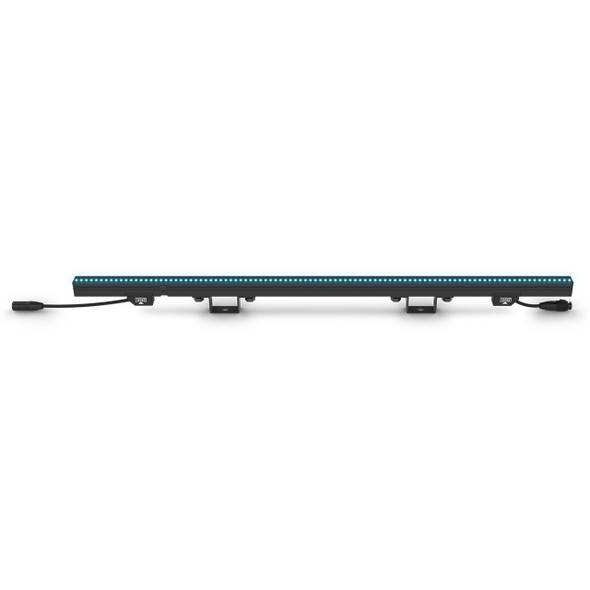

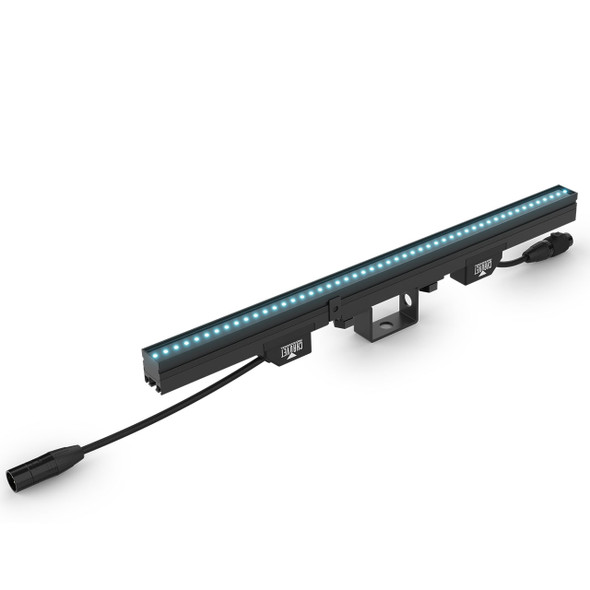

ÉPIX D4 IP is a 4-port drive housing the ÉPIX mapping system – built to easily detect, configure, and control outdoor-rated ÉPIX Line 10 IP and ÉPIX Line 10 IP S linear pixel strips. Its powerful processing unit handles addressing with the intuitive KLSTR push-and-pull mapping system, allowing users to focus on layouts and concepts.

ÉPIX D4 IP is the heart of this latest generation ÉPIX family that introduces a revolutionary new standard in video mapping and a robust new ecosystem. Users can easily create simple and effective designs with the app as well as push highly complex designs and visions through a scalable workflow using industry-standard MVR files.

Designed with modularity, serviceability, and universal connectivity at its core, ÉPIX D4 IP delivers full creative freedom, scalability, and industry-leading efficiency to lighting designers, systems designers, and rental and production houses.

FEATURES

• Intuitive Pixel Mapping – The onboard ÉPIX Mapping System automatically detects and configures connected pixel strips, dramatically simplifying complex layouts and saving valuable setup time on site.
• Seamless Design Workflow – Native MVR and GDTF support creates an efficient production flow, allowing you to move from lighting design software to console playback without extra steps.
• Built For Any Environment – A rugged, IP65-rated housing and modular 2U rack-mount design provide maximum durability and flexibility for both touring productions and permanent architectural installations.
• Centralized Power And Control – Drive up to four runs of ÉPIX pixel strips from a single unit, streamlining your system’s power and data distribution for cleaner, more reliable setups.
• Uninterrupted Signal Reliability – RSTP support provides automatic signal backup and redundancy, ensuring your visuals run flawlessly without interruption even in the event of a network cable failure.

WHAT'S INCLUDED

• ÉPIX D4 IP
• Power Cord (Seetronic powerKON)
• Rack Ears with Screws (2)
• Omega bracket

SPECIFICATIONS

CONSTRUCTION / PHYSICAL

• Dimensions: 14.05 x 11.8 x 11.4 in. (357 x 300 x 289 mm)
• Dimensions (with rackmount brackets): 20.24 x 11.8 x 11.4 in. (514 x 300 x 289 mm)
• Weight: 15lb (6.8 kg)
• Exterior Color: Black
• Housing Material: Aluminum extrusion, Aluminum die-cast, rubber
• Rackmount: 2U

CONNECTIONS

• Power input: Seetronic Powerkon (powerCON Compatible)
• Power output: Seetronic Powerkon (powerCON Compatible)
• Device output (4): 4-pin XLR (IP65)
• Data connectors (3): Seetronic etherKON (etherCON Compatible)
• Intended Load: ÉPIX Line 10 IP, EPIX Line 10 IP S
• Minimum required device linking cable size: 4 conductor (2 x 14 AWG, 2 x 16 AWG)
• Total max. cable length (shielded cables) between EPIX D4 IP and last EPIX Line: 210 ft (64 m)
• Max. cable length (shielded cables) between EPIX D4 IP and first EPIX Line: 65 ft (20 m)
• Total max. cable length (unshielded cables) between EPIX D4 IP and last EPIX Line: 300 ft (91 m)
• Max. cable length (unshielded cables) between EPIX D4 IP and first EPIX Line: 150 ft (45 m)
• Max. cable length (unshielded cables) between each EPIX Line: 100 ft (30 m)

CONTROL

• Control Protocol: Art-Net, sACN, Art-RDM, KLSTR, ÉPIX Mapping System
• DMX Channels: 2, 18, Groups of 5/10/255/50, or 300
• Video Refresh Rate: 60 Hz

ELECTRICAL

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 0 units @ 120 V; 3 units @ 208 V; 3 units @ 230 V; 3 units @ 240 V
• Power and Current:
  • 1,200 W, 12 A @ 100 V, 60 Hz
  • 1,200 W, 10 A @ 120 V, 60 Hz
  • 1,200 W, 5.77 A @ 208 V, 60 Hz
  • 1,200 W, 5.22 A @ 230 V, 50 Hz
  • 1,200 W, 5 A @ 240 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

• Compliance: CE, MET, ROHS
• IP Rating: IP65
• Operating Temperature: -4 °F to 122 °F (-20 °C to 50 °C)
