Chauvet Professional

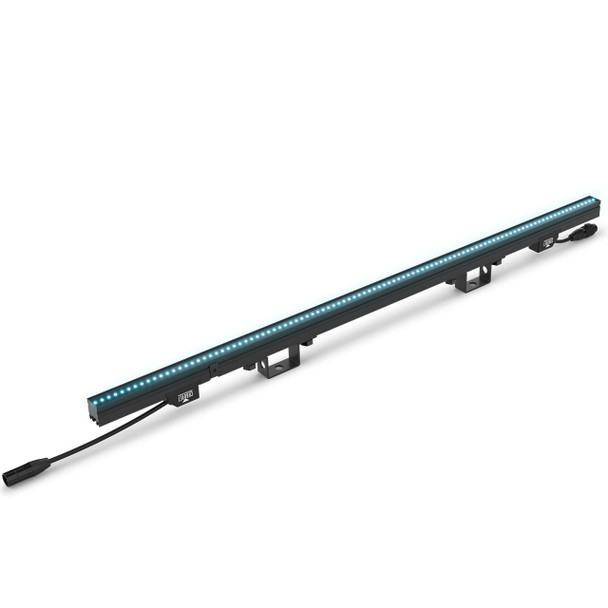

Chauvet Professional Epix Line 10 IP
- UPC:
- 781462229108
- MPN:
- EPIXL10IP
- Availability:
- This item is shipped directly from the vendor and is subject to their availability.
- Drop Shipment:
- Not available for in-store pick up
Frequently bought together:
Description
ÉPIX Line 10 IP delivers vivid wide-gamut RGB color and a variety of looks and viewing angles with three included optical filters. Powered by the ÉPIX D4 IP Drive, this sleek 1-meter outdoor-rated linear pixel strip offers native compatibility with the ÉPIX Mapping System, industry-standard MVR file support, and automatic fixture detection, enabling fast streamlined video mapping and scalable configuration in the most demanding touring, rental, and permanent integration applications.
FEATURES
- Dynamic Outdoor-Rated Visuals – The IP65-rated linear design delivers vivid, wide-gamut RGB color perfect for dynamic architectural facades and large-scale entertainment productions.
- Versatile Optical Control – Shape your output for any application using the three included optical filters that provide multiple looks and wide viewing angles.
- Compact And Serviceable Design – A slim form factor simplifies integration into tight spaces while full repairability ensures long-term reliability and lower total cost of ownership.
- Streamlined System Configuration – Native compatibility with the ÉPIX Mapping System and MVR support enables fast, intuitive video mapping and scalable system deployment.
WHAT'S INCLUDED
- ÉPIX LINE 10 IP
- Interlocking Bracket
- (2) Mounting Brackets (Installed)
- Milky White Square Filter (Installed)
- Black Stealth Square Filter (Included)
- Milky White Round Filter (Included)
REQUIRED ACCESSORIES
- Controller (required): ÉPIX D4 IP
- Optional Software (mapping): KLSTR
- Compatible Mounting Options: EPIXMNTSPIGOT, M12 BOLT
SPECIFICATIONS
OPTICAL
- Light Source: 100 SMD 2727LEDs (tri-color RGB), 50,000 hours life expectancy
- Beam Angle (open optics): 115.2°
- Field Angle (open optics): 163°
- Viewing Angle (open optics): 171.6°
- Lumens:
- Open optics: 1,538
- Square milky white optics: 784
- Square black stealth optics: 239
- Round milky white optics: 943
- Pixel Pitch: 10 mm
- Display Refresh Rate: 4,900 Hz
DYNAMIC EFFECTS
- Strobe Rate: 0 to 30 Hz
CONSTRUCTION / PHYSICAL
- Dimensions:
- No filter: 39.37 x 1.161 x 2.862 in. (1,000 x 29.5 x 72.7 mm)
- Square filter installed: 39.37 x 1.228 x 2.862 in. (1,000 x 31.20 x 72.7 mm)
- Round filter installed: 39.37 x 1.969 x 2.862 in. (1,000 x 50 x 72.7 mm)
- Weight: 2.89 lb (1.3 kg)
- Exterior Color: Black
- Housing Material: Aluminum alloy, Aluminum die-cast, High-impact flame-retardant polymer, Stainless Steel
CONNECTIONS
- Power Supply (remote driver): EPIX D4 IP
- Physical Linking (Standard Mode): 10 inline EPIX Line 10 IP
- Physical Linking (Hi Power Mode): 6 inline EPIX Line 10 IP
- Data Connectors: 4-pin IP65 XLR
- Minimum required device linking cable size: 4 conductor (2 x 14 AWG, 2 x 16 AWG)
- Total max. cable length (shielded cables) between EPIX D4 IP and last EPIX Line: 210 ft (64 m)
- Max. cable length (shielded cables) between EPIX D4 IP and first EPIX Line: 65 ft (20 m)
- Max. cable length (shielded cables) between each EPIX Line: 60 ft (18 m)
- Total max. cable length (unshielded cables) between EPIX D4 IP and last EPIX Line: 300 ft (91 m)
- Max. cable length (unshielded cables) between EPIX D4 IP and first EPIX Line: 150 ft (45 m)
- Max. cable length (unshielded cables) between each EPIX Line: 100 ft (30 m)
CONTROL
- Control Protocol: Art-Net, sACN, Art-RDM, KLSTR, ÉPIX Mapping System
- DMX Channels: 2, 18, Groups of 5/10/255/50, or 300
- Video Refresh Rate: 60 Hz
ELECTRICAL
- Input Voltage: 48VDC
- Power and Current
- Standard: 21 W, .44 A @ 48 VDC
- Hi Power: 32 W, .671 A @ 48 VDC
CERTIFICATIONS / QUALIFICATIONS
- Compliance: CE, MET, FCC, ETL, UKCA
- IP Rating: IP65
- Operating Temperature: -4 °F to 122 °F (-20 °C to 50 °C)
