Chauvet Professional
Chauvet Professional Epix Strip Tour Package
- SKU:
- DEMO-CH-EPIX-STRIP-TOUR-KIT
- MPN:
- EPIXSTRIPTOUR, EPIXSTRIPTOUR50, RIGLINKXLR45FT
- Condition:
- Used
- Availability:
- Usually ships within 2 business days when in stock.
On Sale
Frequently bought together:
Description
Used – Very Good: The item has been well-cared-for, has undergone limited use, and is still in excellent working condition. It may show limited signs of wear, i.e. small scratches or cosmetic errors.
**ONLY includes items in the images. Does NOT include other lens accessories.
The Chauvet Professional ÉPIX Strip Tour and the ÉPIX Strip Tour 50 are pixel-mapping LED strips, featuring 50 LEDs in a row and a 125º viewing angle. Power and control it through the ÉPIX Drive 900 on Art-Net, Kling-Net, or sACN (streaming ACN)

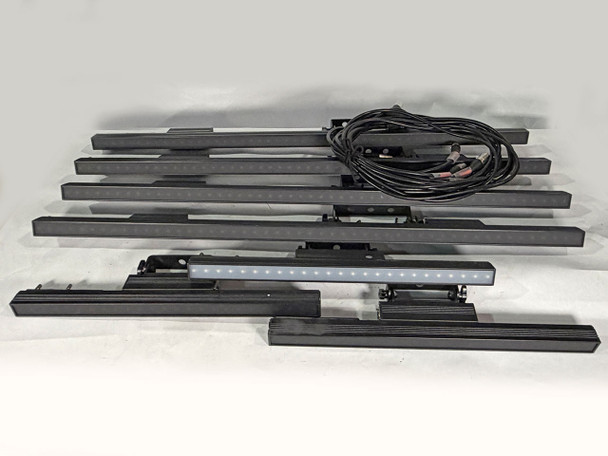

WHAT'S INCLUDED
- (4) ÉPIX Strip Tour with black stealth filter (installed)
- (2) ÉPIX Strip Tour 50 with black stealth filter (installed)
- (1) ÉPIX Strip Tour 50 with white frost filter (installed)
- (7) 4-pin XLR Data Cables 5 ft long
NOTE: ÉPIX Drive 900 required for operation (sold separately)
FEATURES
- ÉPIX Strip Tour: Pixel-mapping 1-meter 50 x 1 LED strip for showing video and/or motion graphics
- ÉPIX Strip Tour 50 is a half-meter 25 x 1 LEDs
- Versatile control options include Art-Net, Kling-Net, and sACN (streaming ACN) to support the touring, rental, and installation markets
SPECIFICATIONS
ÉPIX Strip TourOPTICAL
- Light Source: 50 LEDs (tri-color RGB) SMD 5050, 50,000 hours life expectancy
- Viewing Angle: 125°
- Illuminance - black stealth filter (installed): 267 NITS
- Pixels: 50 x 1
- Pixel Pitch: 20 mm
- Refresh Rate: 4,700 Hz
CONSTRUCTION / PHYSICAL
- Dimensions: 39.37 x 4.72 x 1.18 in (1000 x 120 x 30 mm)
- Weight: 3.44 lb (1.56 kg)
- Exterior Color: Black
- Housing Material: Aluminum
CONNECTIONS
- Data Connectors: 4-pin XLR
- Physical Linking: 18 inline ÉPIX Strip Tour
- Minimum required device linking cable size: 4 conductor (2 x 18 AWG, 2 x 20 AWG)
- Total max. cable length (shielded cables) between ÉPIX Drive 900 and last ÉPIX Tour fixture: 210 ft (64 m)
- Max. cable length (shielded cables) between ÉPIX Drive 900 and first ÉPIX Tour fixture: 65 ft (20 m)
- Max. cable length (shielded cables) between ÉPIX Tour fixtures: 60 ft (18 m)
- Total max. cable length (unshielded cables) between ÉPIX Drive 900 and last ÉPIX Tour fixture: 300 ft (91 m)
- Max. cable length (unshielded cables) between ÉPIX Drive 900 and first ÉPIX Tour fixture: 150 ft (45 m)
- Max. cable length (unshielded cables) between ÉPIX Tour fixtures: 100 ft (30 m)
CONTROL
- Control Protocol: Art-Net, Kling-Net, sACN
- Control Channels: 150
ELECTRICAL
- Power and Current: 17 W, 0.14 A @ 120 V, 60 Hz
- Power and Current: 17 W, 0.08 A @ 208 V, 60 Hz
- Power and Current: 17 W, 0.07 A @ 230 V, 50 Hz
CERTIFICATIONS / QUALIFICATIONS
- CE, MET
- IP Rating: IP20, dry location
- Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
ÉPIX Strip Tour 50
OPTICAL
- Light Source: 25 LEDs (tri-color RGB) SMD 5050, 50,000 hours life expectancy
- Viewing Angle: 125°
- Illuminance - black stealth filter (installed): 267 NITS
- Pixels: 25 x 1
- Pixel Pitch: 20 mm
- Refresh Rate: 4,700 Hz
CONSTRUCTION / PHYSICAL
- Dimensions: 19.68 x 1.2 x 4.7 in. (500 x 30.5 x 119.5 mm)
- Weight:
- Exterior Color: Black
- Housing Material: Aluminum
CONNECTIONS
- Data Connectors: 4-pin XLR
- Physical Linking: 36 inline ÉPIX Strip Tour
- Minimum required device linking cable size: 4 conductor (2 x 18 AWG, 2 x 20 AWG)
- Total max. cable length (shielded cables) between ÉPIX Drive 900 and last ÉPIX Tour fixture: 210 ft (64 m)
- Max. cable length (shielded cables) between ÉPIX Drive 900 and first ÉPIX Tour fixture: 65 ft (20 m)
- Max. cable length (shielded cables) between ÉPIX Tour fixtures: 60 ft (18 m)
- Total max. cable length (unshielded cables) between ÉPIX Drive 900 and last ÉPIX Tour fixture: 300 ft (91 m)
- Max. cable length (unshielded cables) between ÉPIX Drive 900 and first ÉPIX Tour fixture: 150 ft (45 m)
- Max. cable length (unshielded cables) between ÉPIX Tour fixtures: 100 ft (30 m)
CONTROL
- Control Protocol: Art-Net, Kling-Net, sACN
- Control Channels: 150
ELECTRICAL
- Power and Current: 7 W, 0.051 A @ 120 V, 60 Hz
- Power and Current: 9 W, 0.046 A @ 208 V, 60 Hz
- Power and Current: 8 W, 0.031 A @ 230 V, 50 Hz
CERTIFICATIONS / QUALIFICATIONS
- CE, MET
- IP Rating: IP20, dry location
- Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
