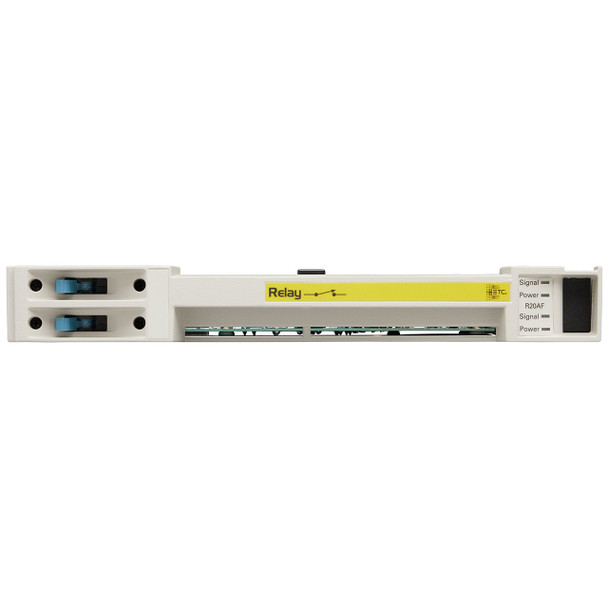

ETC R20AF Dual 20A Relay Module with Advanced Features
- MPN:
- 7050A1185
- Availability:
- This item is shipped directly from the vendor and is subject to their availability.
- Drop Shipment:
- Not available for in-store pick-up
- Dimming:
- modules
Frequently bought together:
Description
The ETC relay module is a dual, plug-in mechanical relay assembly for use in both Sensor®+ and Unison® Dimming Series modular dimmer rack enclosures. each relay module provides two electrically held relays, in the same form factor as standard dimmer modules. this enables designers to mix and match dimmer and relays for control of diverse loads. Ideal for control of non-dimmable load types such as HID lamps. Standard relay modules provide cost-effective switching while advanced features relay modules enable dimmer-specific feedback of load circuit data while performing switching in af-capable Sensor+ dimmer enclosures
APPLICATIONS
- High Intensity Discharge ballasts (Metal Halide and High Pressure Sodium)
- Non-dimmed On/Off loads
- Motors
- Power for fans and standard outlets
- Moving lights, fog machines and other powered effects
FEATURES
- Level-activated mechanical relays
- Two circuits per module
- High-density modular assembly
- Die-cast aluminum chassis
- Fully magnetic circuit breakers
SPECIFICATIONS
GENERAL
- 100,000A Short Circuit Current rating (SCCR)
- UL and cUL Listed for continuous duty at 100% of rated load
- R20AF – 2.4kW
PHYSICAL
- Modular plug-in assemblies
- Cast aluminum chassis, finished with textured epoxy paint
- Keyed to prevent insertion in inappropriately rated rack positions
CIRCUIT BREAKERS
- Fully magnetic to eliminate nuisance tripping
- 20x inrush current rating
- 125%, 10-120 seconds, must-trip rating
- Rated for 100% switching duty applications
ELECTRICAL RATINGS
- 100,000A Short Circuit Current Rating (SCCR)
- Modules withstand hot-patching of cold loads up to full rating
- UL and cUL LISTED
RELAYS
- 20 amp, level-activated mechanical relay
- Rated for 200,000 full load activation
- Rated for 5 million no load activation
- R20AF rated for 1.50HP at 20.0A
- Rated for 20A General Purpose, 10A Tungsten and 1.5 HP Motor Maximum
POWER DEVICE
- Sealed, patented assembly
- Standard modules have one control leD per circuit
- Advanced features modules have one control leD and one output leD per circuit
- Integral bonded heatsink
- Advanced features modules have built-in voltage and current sensors
- Advanced Features error messages
- Load dropped below recorded value
- Load increased over recorded value
- SCR failed on/off
- Circuit breaker tripped
- Dimmer module removed
- Dimmer load absent
PHYSICAL
- Dimensions: 4.9" x 11.8" x 1.5" (127 x 300 x 38 mm)
- Weight: 2.6 lb (1.2 kg)
- Model: R15
