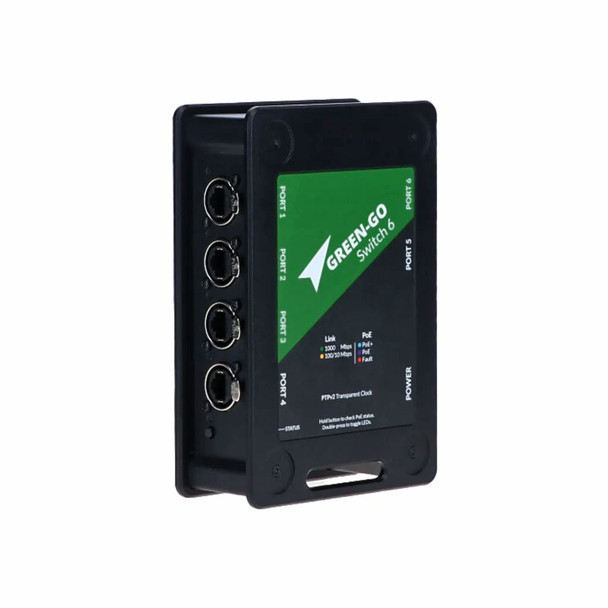

Green-GO SW6 6-Port PoE+ 6 Gigabit Switch

The Green-GO Switch 6 is a compact network switch for the Green-GO digital intercom system, designed for demanding live, entertainment and installation environments where mixed data protocols can overload standard network switches.

It features six Gigabit PoE(+) ports and passive cooling for silent and reliable operation. With support for PTPv2, the Switch 6 provides the network foundation required for use with the Green-GO Stride Antenna.

Its rugged housing includes an M10 thread and safety attachment points, making it suitable for flexible mounting in a wide range of applications.

FEATURES

• (6) 10/100/1000 Mbps EtherCON Network Ports
• Real-time backup loops
• 4 1Gbps EtherCON Network Ports with PoE (802.3af-2003 Standard) on the front with RGB LED
• PoE(+) ports on all ports, with a total budget of up to 90W, conform IEEE 802.3af (15.4W) and IEEE 802.3at (30W)
• LED indicators per port, switchable to show link status and PoE(+) budget and can be turned completely off
• PTPv2 (IEEE 1588-2008) End-to-End (E2E) Transparent Clock (TC) (enabled by default, no configuration needed)
• Supports multicast and unicast PTPv2 messages
• Jumbo packets up to 9000 bytes
• 1 QoS queue per port
• Monitoring using Green-GO Control (this feature will be enabled in future firmware updates)
• Robust metal housing with M10 thread for attachment and latch options for safety wire
