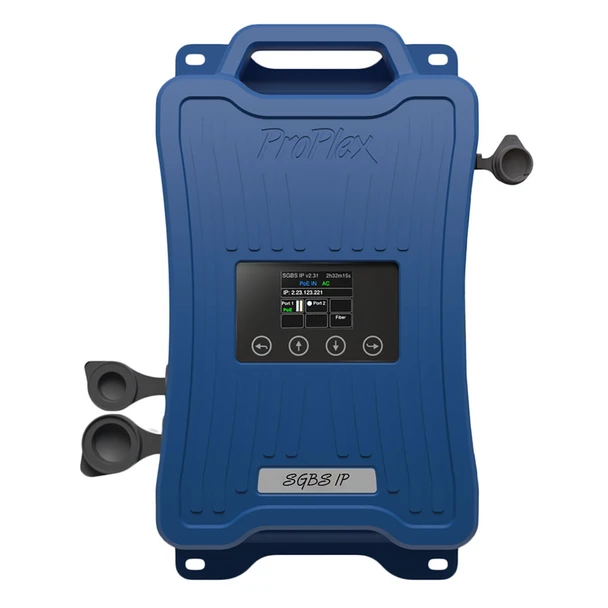

ProPlex Simple Gigabit Switch IP 6-Port

The ProPlex SGPS IP is part of the new ProPlex IP portable data distribution range. IP rated devices designed for demanding outdoor environments and temporary installations.

FEATURES

• ProPlex “Simple” push-button switch configuration
• 1 x 1Gbit Duo or Quad Fiber, with 5 x copper ports or 6 x copper ports
• LCD screen with armored glass and capacitive control buttons
• 1 x PoE / PoE+ input
• 4 x PoE+ (30W) outputs, 120W total budget
• •IP67

ProPlex SGBS 10-port LTR Datasheet

SPECIFICATIONS

• Model: SGBS IP
• Part Number: PPSGBSPO006MIP
• Copper Ports: 6 x RJ45 E-CON TYPE IP67
• PoE Input Ports: 1 X POE OR POE+ (IEEE 802.3AF / IEEE 802.3AT)
• PoE Output Ports: 4 X POE+ (IEEE 802.3AT)
• Ethernet Type: GIGABIT ETHERNET (1 GBIT)
• Power Input: 100-240 VAC 50-60 HZ
• Power Connector: TRUE-1TYPE IP67 IN AND THRU
• Power Consumption: 150 W MAX
• Cooling: Passive
• Operating Temperature: -20 to +40 °C (-4 to +104 °F)
• IP Rating: IP67
• LCD Screen: IK08 Rated Armored Glass
• Unit Dimensions (WxHxD): 6.3 X 10.3 X 2.9 in. (159.8 X 263.3 X 73.2 mm)
• Weight: 1.2 lbs (0.5 kg)
