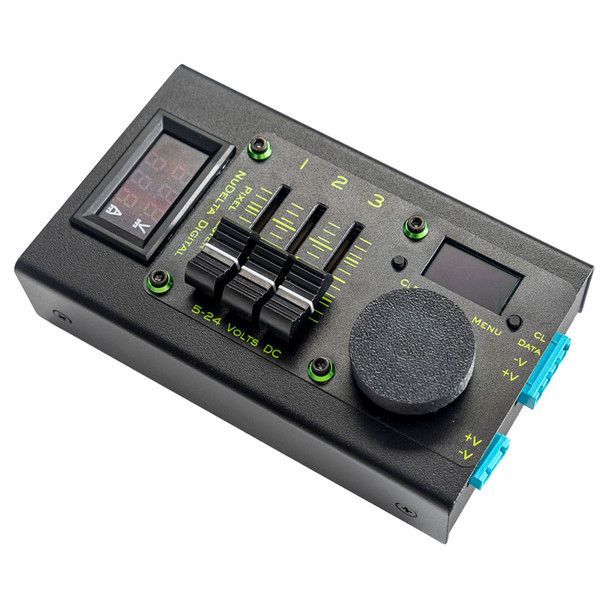

NuDelta LED Pixel Tester

The NuDelta LED Pixel Tester for LED pixel tape and pixel modules that run on 5 to 24 volts DC. The Pixel Tester has several built in test patterns for testing hundreds of pixels at once. Measures voltage going in. Measures current going out. Three color channels.

FEATURES

• Works with a wide variety of LED pixel types
• Test pixels that operate on 5 to 24 volts DC
• Test individual pixels or groups
• Run a variety of test sequences
• Manually control pixels for film, television, theatre or photography
• Use as a demonstration tool for classrooms
• Test automotive or aviation pixel modules
• Make sure the LEDs work before you install them
• Measure the voltage of your power supply
• Measure the current consumption of your pixels
• Test the color or brightness to make sure it works for your application

MORE FEATURES

• Safety First! – Includes an optional corner attachment ring for a safety tether. Use it whenever the tester is being used overhead.
• Removable connectors – Connect bare wire or use our wiring clips
• Extra connector included – Comes with alligator clips for quickly connecting to bare wires. Also includes an extra connector if you have a favorite led tape or module connector you use often.
• Power input options – Comes with a standard 5.5 millimeter connector on one end and removable wiring terminal on the other.

SPECIFICATIONS

• Sturdy steel enclosure
• Power input: 5.5 millimeter connector on one end and removable wiring terminal on the other
• Includes alligator clips, extra connector, and carrying case
• Made in the USA

NOTE: Power supply, battery, adapter, cable, and LED Pixel tape are not included.
